Toughbox Mini, 12.75:1 Ratio, no Shaft Plate - am-3099 - migrated

Toughbox Mini, 12.75:1 Ratio, no Shaft Plate

by AndyMark
Sold out
$59.00 - $59.00
$59.00
$59.00
$59.00 - $59.00
$59.00
SKU am-3099
  • Description
  • Product Usage:
    We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thoroughly grease the gear teeth periodically to ensure smooth operation.

    Product Overview:

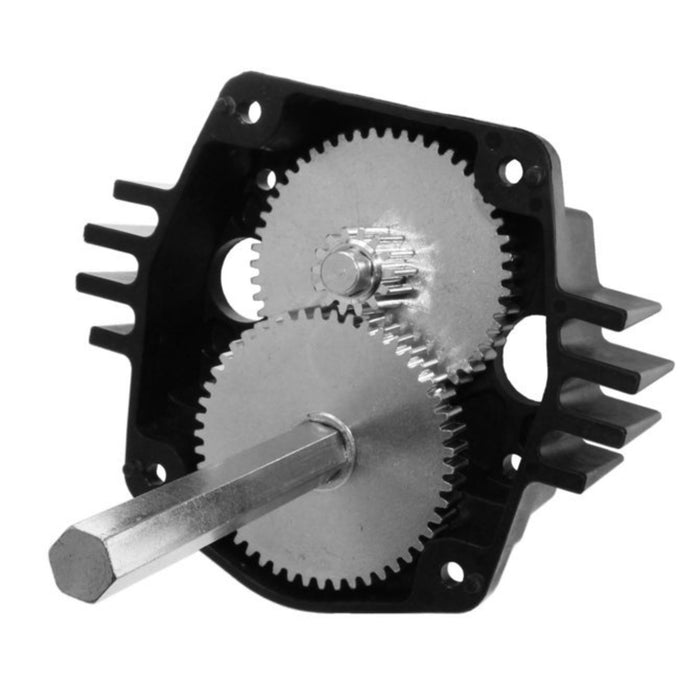

    This is the Toughbox Mini with no shaft plate. It is similar to the Toughbox, but it is slightly smaller in profile and is 1/2 pound lighter. The Toughbox Mini uses the same interior parts as our standard Toughbox, and is shipped un-assembled.

    Toughbox Mini accepts two (or one) 2.5 inch CIM Motors (not included). Hardware is included with the gearbox for attaching two of these motors.

    Specifications:
    • Overall Ratio: 12.75:1 (standard)
    • Gear material: 4140 steel
    • Gear type: spur gears, 20 dp, 14.5 degree pressure angle
    • Gearbox housing material: Nylon 6/6 with long fiberglass fill
    • Output shaft: 1/2 in. diameter Hex
    • Weight: pounds
    • Input Gear: CIM Gear, 14 tooth, 0.315 inch bore w/ 2 mm keyway
    Optional Gear Ratios:

    These ratios can be ordered here: ToughBox Mini Options
    Ratio CIM Gear Lg. Cluster Gear Sm. Cluster Gear Lg. Output Gear
    10.71:1 14 tooth 50 tooth 16 tooth 48 tooth
    8.46:1 14 tooth 50 tooth 19 tooth 45 tooth
    5.95:1 14 tooth 50 tooth 24 tooth 40 tooth


    Weight Reduction with Optional Parts:
    Aluminum Large Cluster Gear can replace the standard steel 50 Tooth Large Cluster Gear.
    Aluminum Large Output Gear can replace the standard steel 50 Tooth Large Output Gear.

    Additional Encoder:
    An optional Encoder can be purchased and added to this Toughbox.

    Optional Long Output Shaft:
    T-Box Long Output Shaft is available, which is 3.5 in. longer than the standard Output Shaft.
