This is an encoder cable used to provide power and receive encoder signals from a Hall Effect Two Channel Encoder.

Description
Specifications
Documentation

This is an encoder cable used to provide power and receive encoder signals from a Hall Effect Two Channel Encoder and break out each connection to a single pin perfect for a 2.54 mm pitch.

This encoder is provided on our RS775 motor, which is on our PG Gearmotors as well as the NeveRest motor, which is on these Gearmotors:

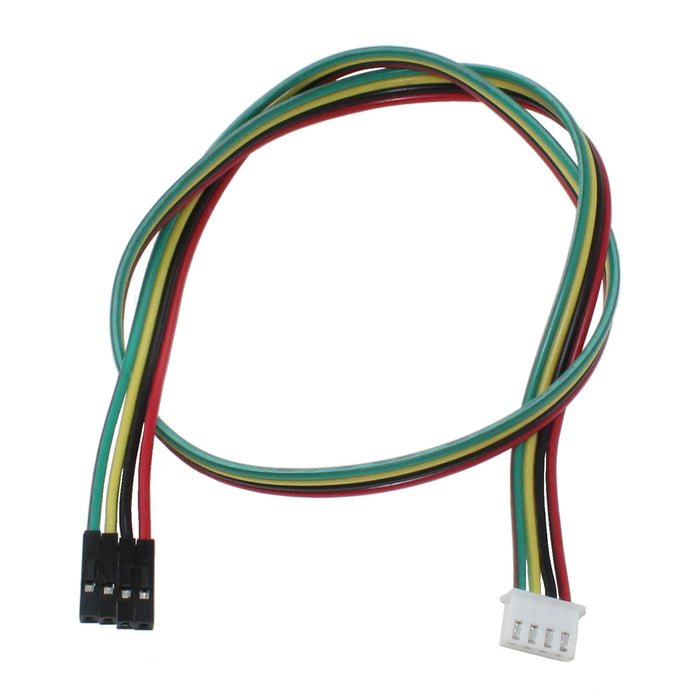

It has a common white connector on the end addressing the encoder and four individual female connections to fit into the input connector on a robot controller.
- Weight: 0.03 lbs
Layout Prints
am-2993 split end encoder cable.pdf

Essential

Important if you want to interface with the motor encoder. I had never tried it before. It's a good unit. It has high resolution! Worth it.

'Review'

'5 stars'

Review

5 Stars

Review

5 Stars

High quality cable

This cable is perfect for its use but could be a bit less expensive...perhaps $2.50 or $3.00. It could also simply be part of the motor it connects to. I will buy more of them when I order new motors.
