35 Tooth 20 DP 8 mm Round Bore Steel Pinion Gear - am-2460 - migrated

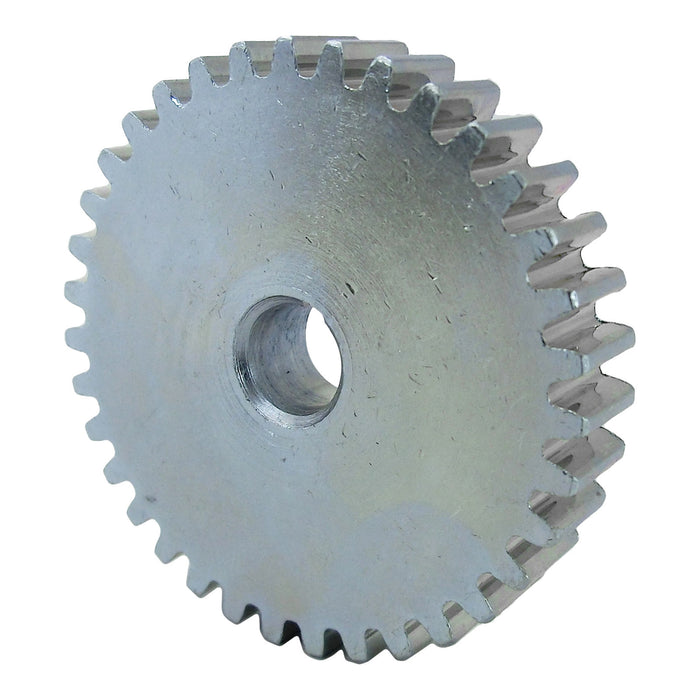

35 Tooth 20 DP 8 mm Round Bore Steel Pinion Gear

by AndyMark
Sold out
$16.00 - $16.00
$16.00
$16.00
$16.00 - $16.00
$16.00
35 Tooth 20 DP 8 mm Round Bore Steel Pinion Gear
SKU am-2460
  • Specifications
  • Documentation
    • Bore: 8 mm Round w/ keyway
    • Diametral Pitch: 20
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pitch Diameter: 1.75 in.
    • Pressure Angle: 14.5°
    • Teeth: 35
    • Thickness: 0.35 in.
    • Weight: 0.2 lbs.

  • Layout Prints

    am-2460 35 Tooth CIM Gear.PDF
