1 x 1 Peanut Extrusion Different Lengths

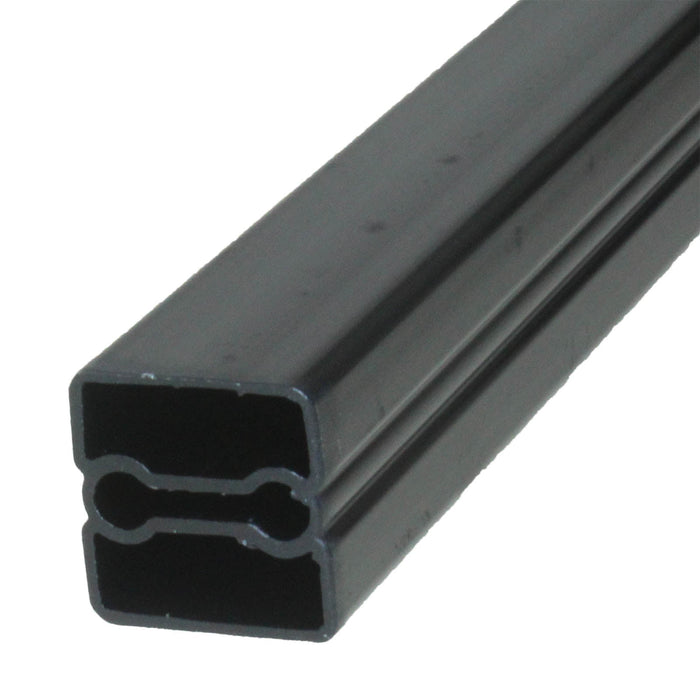

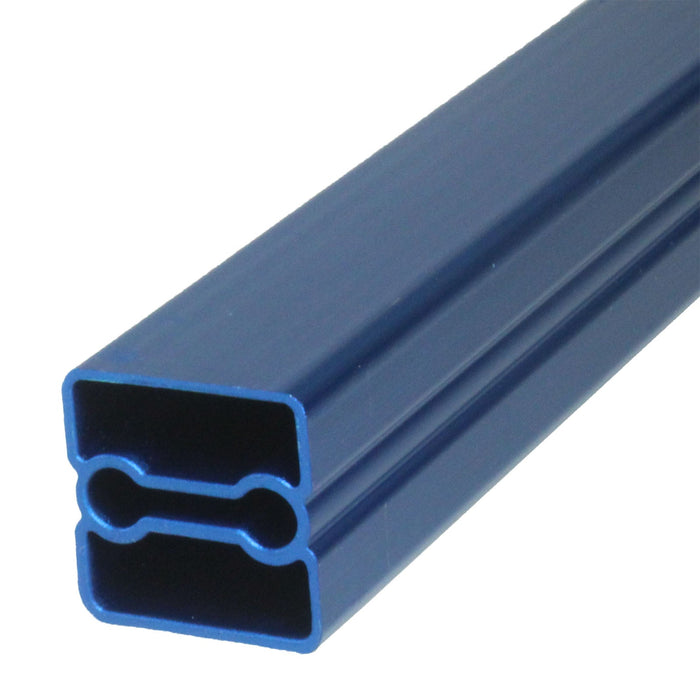

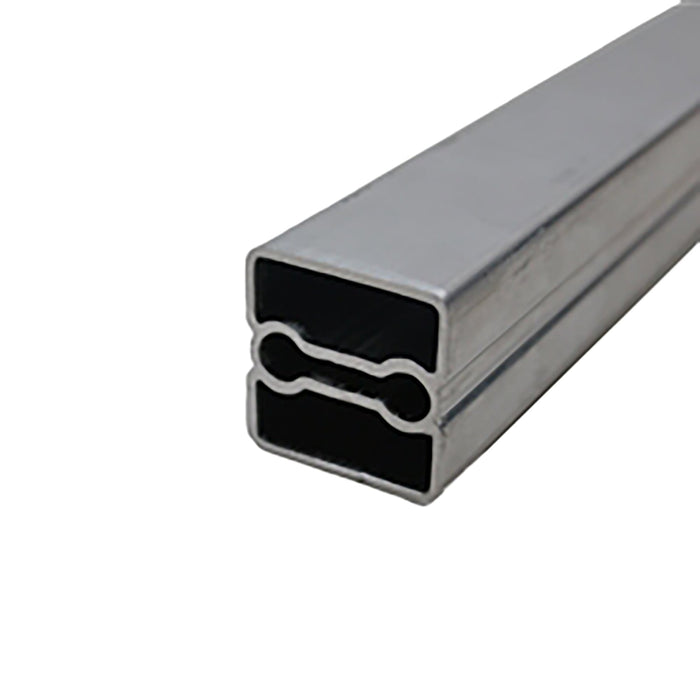

Peanut Extrusion is the 1 in. x 1 in. installment of our easy-to-use structure system. The profile of this extrusion looks like a peanut, and has two holes sized for 1/4-20 thread-forming screws. The added mid-spans are positioned to flank a pair of bolts that self thread into an adjoining piece of Peanut Extrusion. These spans prevent the extrusion from getting crushed by over-tightening. Enjoy the ease of creating rigid corner joints without gussets, with a closed profile that prevents dust and debris build up. Whether you are making a table in your shop or a strong frame for a robot, this extrusion is the one for you!

Walnut Extrusion is the 2 in. x 1 in. iteration of the Peanut profile.

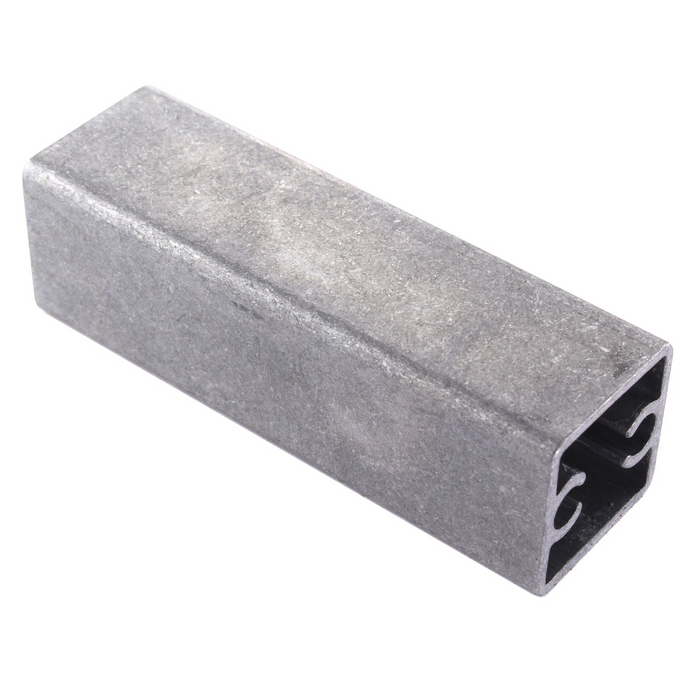

The roughly 3.5 inch long extrusion (am-4504a) is used in the CENTERSTAGE℠ Truss Assembly. It serves as a hard stop to the Stage Door to prevent it from rotating to the other side of the assembly.

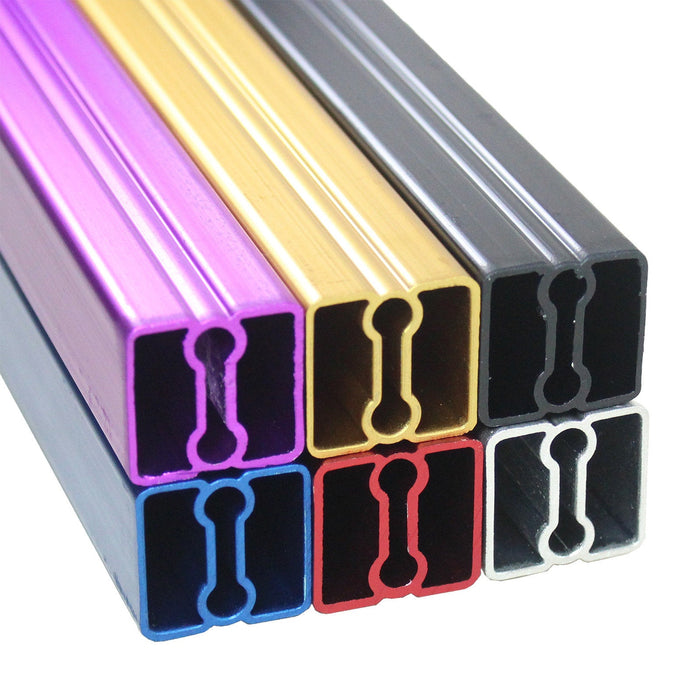

The anodizing process may result in colors that are not exact to the reference photo. FED-STD-595 is a color description system. These anodized products can be described by this system as follows:

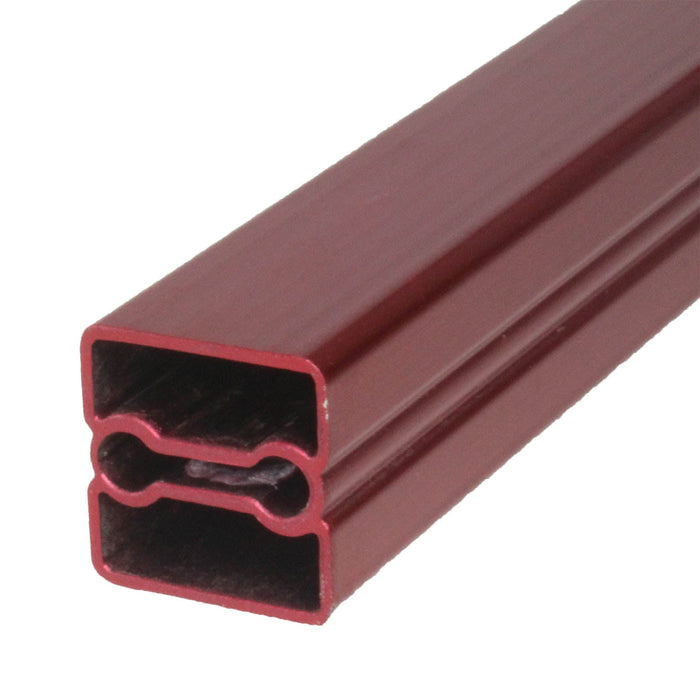

• Red: 31310-31136

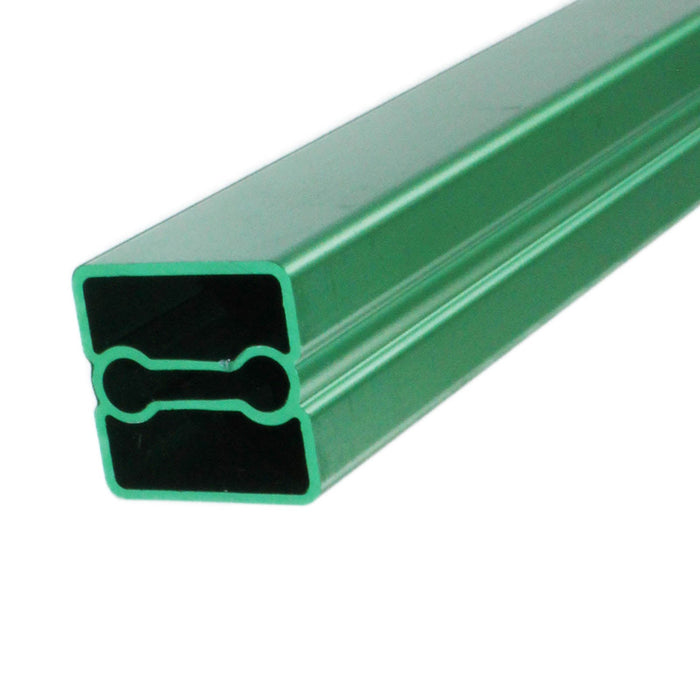

• Green: 24449-24272

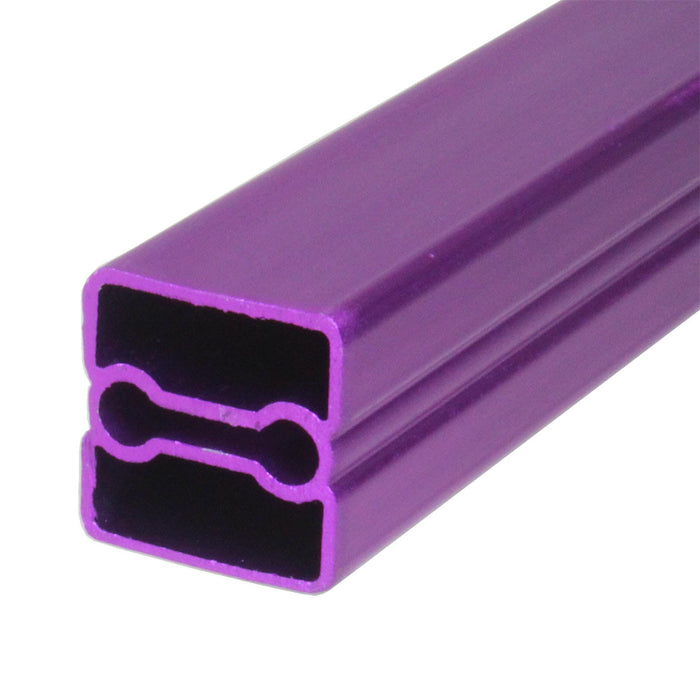

• Violet: 27142-27144
• Blue: 35183-35180

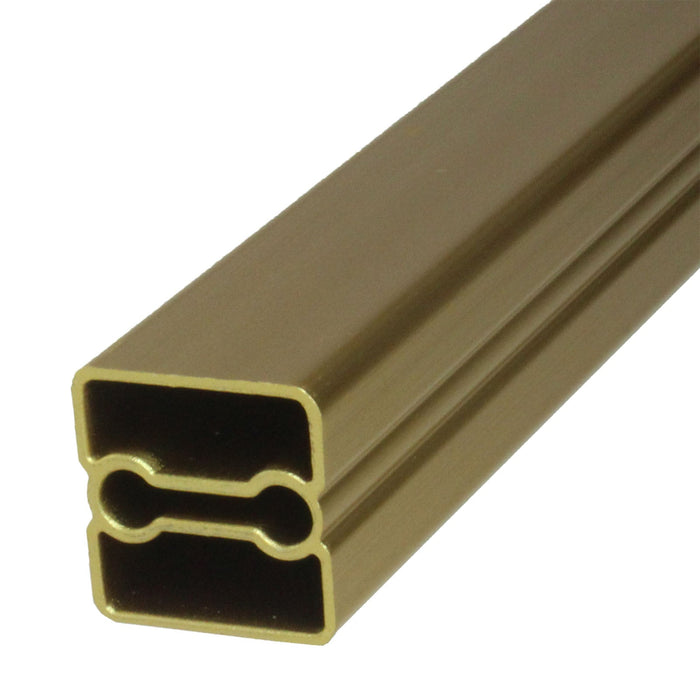

• Gold: 10260-10371
