This product has been replaced by am-3485
24 Tooth 20 DP 0.375 in. Hex Bore Steel Gear - am-0177 - migrated

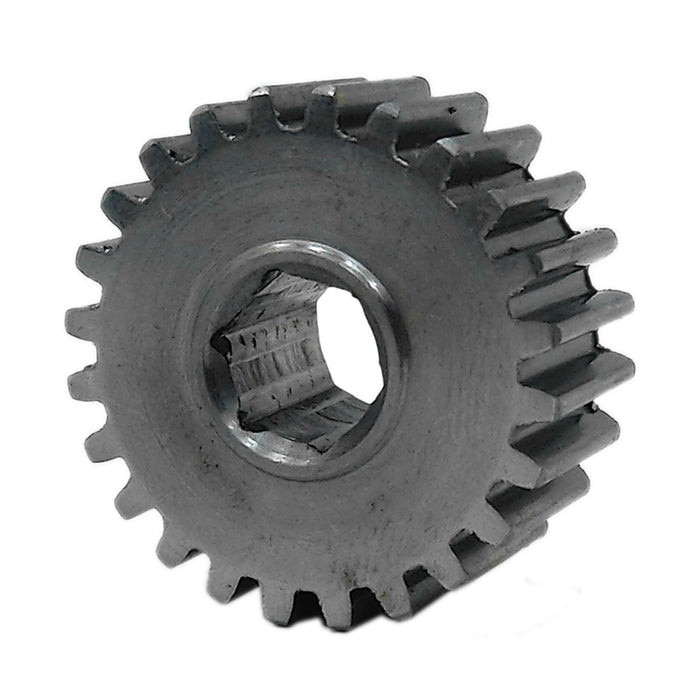

24 Tooth 20 DP 0.375 in. Hex Bore Steel Gear

by AndyMark
$13.00 USD - $13.00 USD
$13.00 USD
$13.00 USD
$13.00 USD - $13.00 USD
$13.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-3485

This product is currently unavailable for purchase

SKU am-0177
  • Description
  • Specifications
  • Documentation
  • This gear can be used in the Toughbox, replacing the 14 tooth small cluster gear. It can be paired with a 40 Tooth Large Output Gear, in order to increase the output speed of the Toughbox®. When using this cluster gear, you may want to add the 3/16 Thick Nylon Spacer (am-1181) to the shaft. This gear is narrower than the standard Toughbox cluster gear and the spacer fills the gap

    Standard Toughbox output reduction: 12.76:1
    Using this gear and a 40 Tooth Large Output Gear yields a 5.95:1 ratio.
    • Bore: 0.375 in. [9.5 mm] (3/8) Hex
    • Diametral Pitch: 20
    • Face Width: 0.375 in.
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Overall Width: 0.4 in.
    • Pitch Diameter: 1.2 in.
    • Pressure Angle: 14.5°
    • Teeth: 24
    • Weight: 0.104 lbs.

  • CAD Files

    am-0177 24T 20dp 375h REV2.STEP

    Layout Prints

    am-0177 24T 20dp 375h REV2.PDF
