25 Series 48 Tooth Ninja Star Sprocket - am-3286 - migrated

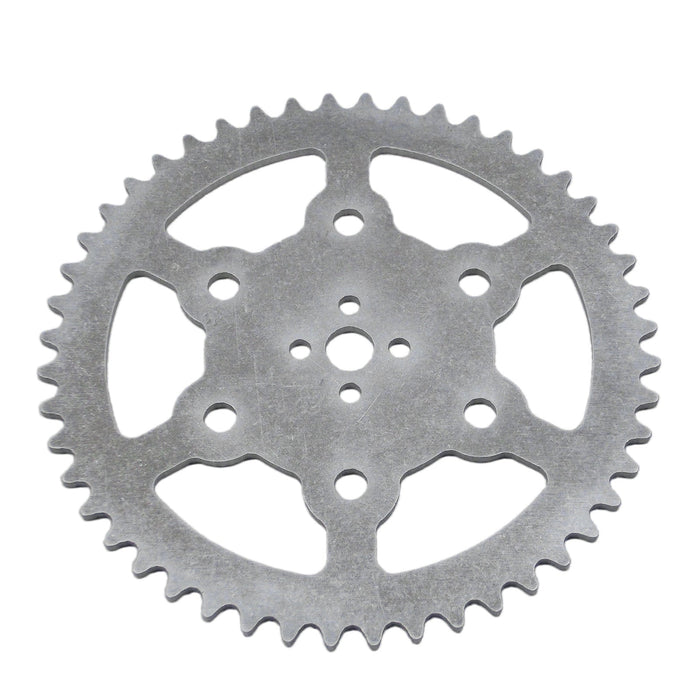

25 Series 48 Tooth Ninja Star Sprocket

by AndyMark
Save 20% Save 20%
$13.80
$13.80 - $13.80
$13.80
$11.04
$11.04 - $11.04
$11.04
The Ninja Star Sprocket is a series of sprockets aimed at giving FTC more options for moving drive systems and mechanisms.
SKU am-3286
  • Description
  • Specifications
  • Documentation
  • This 25 series sprocket features a 16 mm circle of 0.14 in. holes, to work with existing market hardware.
    Learn about how to attach this sprocket to AndyMark Wheels by watching this video!
    • Bolt Circle: 0.14 in. Holes on 0.630 in. [16 mm] Circle AND 0.2 in. Holes on 1.875 in. Circle
    • Bore Diameter: 0.312 in. - 0.321 in.
    • Material: 6061 Aluminum
    • Number of Teeth: 48
    • Outside Diameter: 3.964 in.
    • Pitch Diameter: 3.822 in.
    • Series: #25
    • Thickness: 0.088 in. - 0.098 in.
    • Weight: 0.07 lbs.

  • CAD Files

    am-3286 48t Ninja Star Sprocket.STEP

    Layout Prints

    am-3286 48t Ninja Star Sprocket.PDF

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
DF from Lyndhurst
Exactly

This is exactly what is needed to put a variety of andymark wheels on a tetrix robot.

We had just got done drilling the AM bolt circle in a Tetrix sprocket the day this Ninja Star was announced.
