25 Series Nub Bore Sprockets

25 Series Nub Bore Sprockets - am-25SNubBoreSprockets_1 - Image-1 - migrated

25 Series Nub Bore Sprockets

by AndyMark

$5.90 USD - $9.90 USD

$5.90 USD

$5.90 USD - $9.90 USD

$5.90 USD - $9.90 USD

$5.90 USD

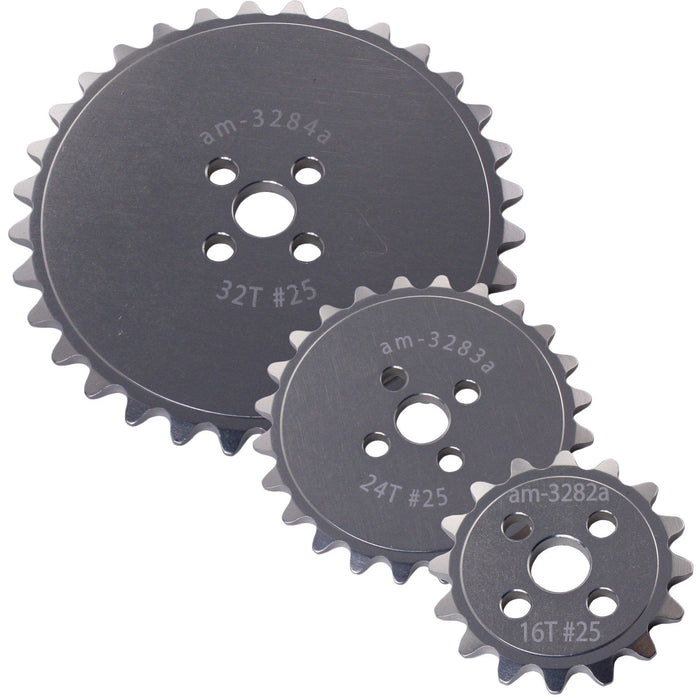

Three different offerings of our 25 Series Plate Sprockets.

Quantity

SKU

Description
Specifications
Documentation

These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving!

These aluminum sprockets work perfectly in the FTC ecosystem where Nubs are common.
- Bolt Circle: 4 holes on 16 mm dia. bolt circle
- Chain Series: 25
- Inside Diameter: 0.313 in. [8 mm] (5/16) Nub Bore
- Material: 7075 Aluminum
- Thickness: 0.157 in.
CAD Files

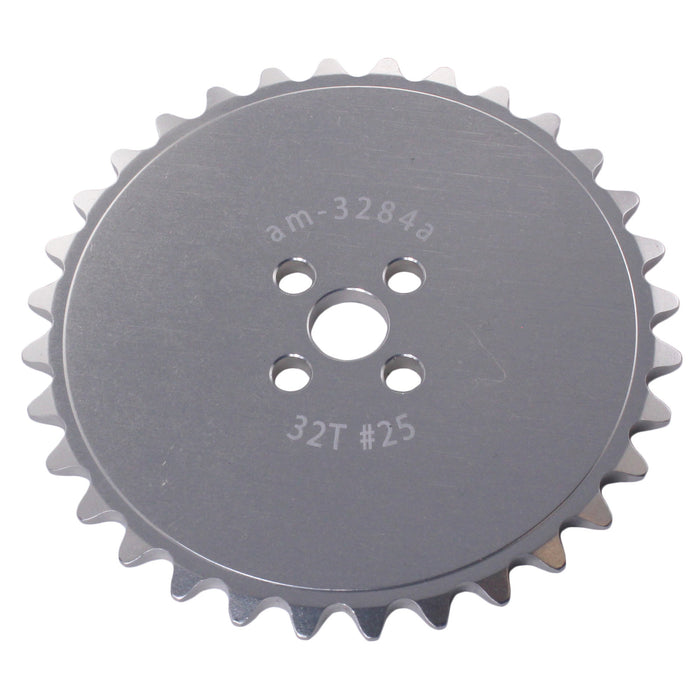

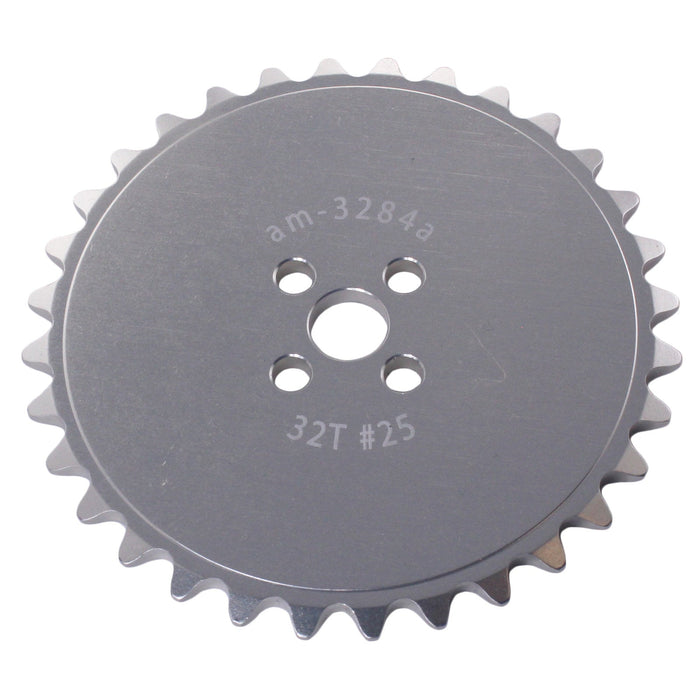

am-3284a 32T 25 Chain Nub Plate Sprocket.STEP

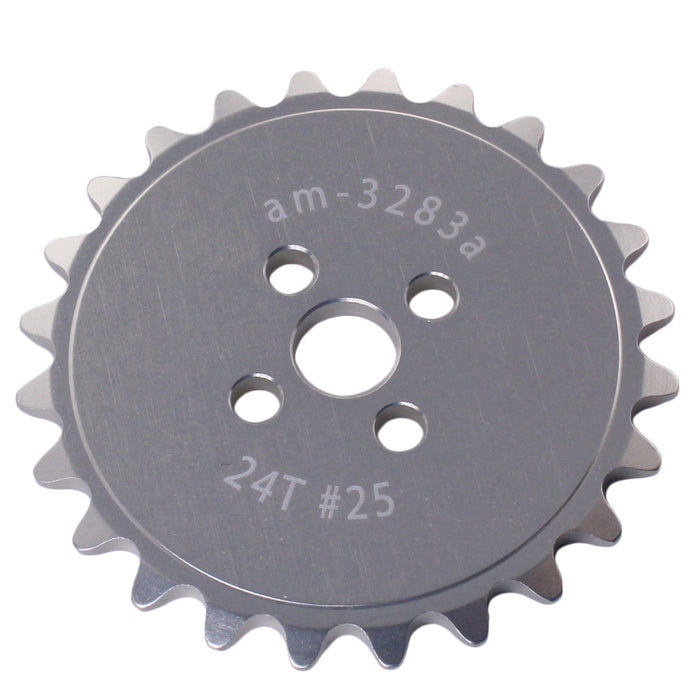

am-3283a 24T 25 Chain Nub Plate Sprocket.STEP

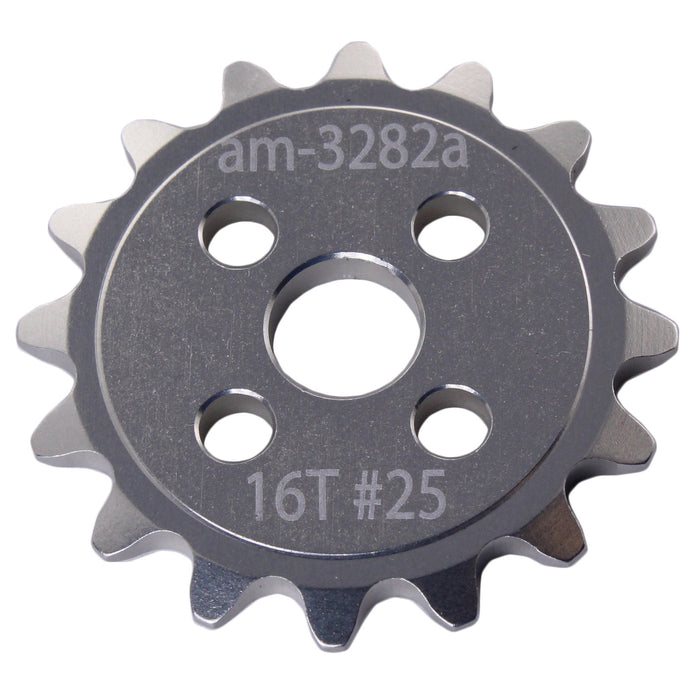

am-3282a 16T 25 Chain Nub Plate Sprocket.STEP
Layout Prints
am-3284a 32T 25 Chain Nub Plate Sprocket.pdf
am-3283a 24T 25 Chain Nub Plate Sprocket.pdf
am-3282a 16T 25 Chain Nub Plate Sprocket.pdf
