3/16 in. ID 1/2 in. OD Shielded Flanged Bearing (FR3ZZ) - am-4459_1 - Image-1 - migrated

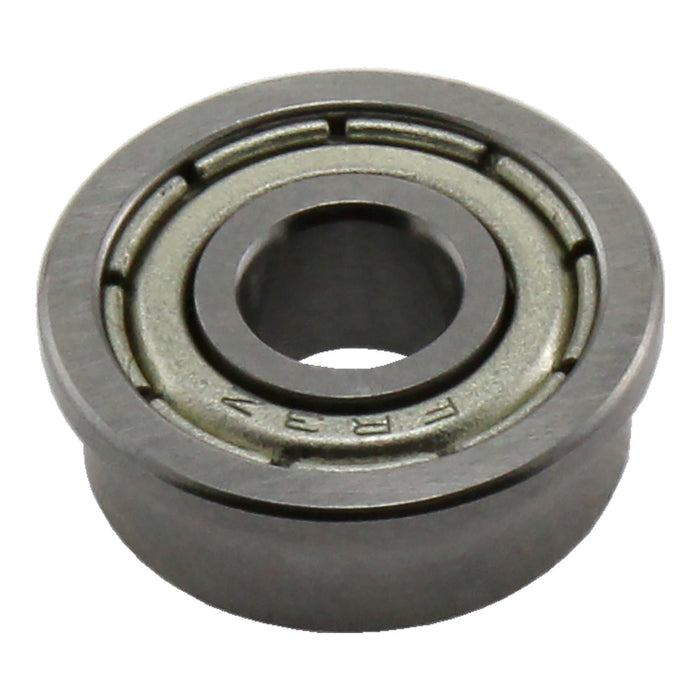

3/16 in. ID 1/2 in. OD Shielded Flanged Bearing (FR3ZZ)

by AndyMark

$2.60 USD - $2.60 USD

$2.60 USD

$2.60 USD

$2.60 USD - $2.60 USD

$2.60 USD

Description
Specifications
Documentation

This is a 3/16 in. round bore bearing that is flanged. The Shielded Ball Bearing is a great way to make things spin fast!
- Bore: 0.188 in. [4.8 mm] (3/16) Round
- Flange: Flanged
- Flange Diameter: 0.565 in.
- Flange Thickness: 0.042 in.
- Material: Steel
- Outside Diameter: 0.5 in.
- Seal Type: Shielded
- Style: Radial
- Weight: 0.006 lbs.
- Width: 0.196 in.
CAD Files
am-4459 3-16 in ID 1-2 in OD Shielded Flanged Bearing FR3ZZ.STEP
Layout Prints
am-4459 3-16 in ID 1-2 in OD Shielded Flanged Bearing FR3ZZ.PDF
