3 in. Aluminum Omni Wheel With 3/8 Hex Bore - am-4967_1 - Image-1 - migrated

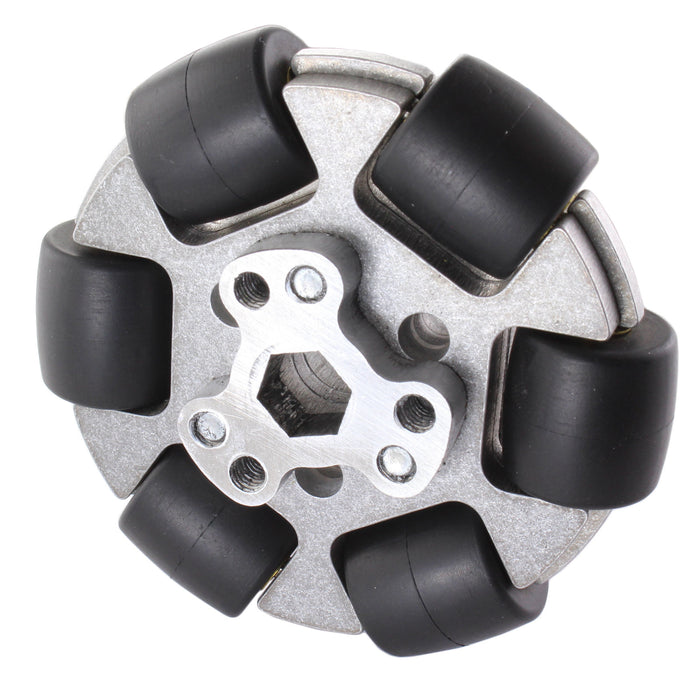

3 in. Aluminum Omni Wheel With 3/8 Hex Bore

by AndyMark

$27.00 USD - $27.00 USD

$27.00 USD

$27.00 USD

$27.00 USD - $27.00 USD

$27.00 USD

This Omni wheel is typically used with FIRST Tech Challenge robots.

Description
What's in the Box?
Specifications
Documentation

This is our 3 in. aluminum omni wheel. This unassembled wheel kit features a 3/8 in. Hex Bore often used in FIRST Tech Challenge. For an even smoother ride, take a look at the Dualie version of this wheel.
Included Items:
- 6 - Black SBR Omni Roller (am-0049a)
- 12 - Omni-Roller Sleeve (am-0050)
- 6 - 1x1/8 in. Steel Dowel Pin (am-1019)
- 3 -10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
- 1 - 3 in. Omni Wheel Inner Plate (am-4967_inner)
- 2 -3 in. Omni Wheel Outer Plate (am-4967_outer)
- 1 - 3 in. Omni Wheel Hex Hub (am-4967_hub)
- Bolt Pattern: 6 holes on a 1 in. dia. bolt circle
- Bore: 0.375 in. [9.5 mm] (3/8) Hex
- Diameter: 3 in.
- Load Capacity: 50 lbs. (rollers do not spin past this weight)
- Material: Aluminum, Brass
- Roller Axle: Steel Dowel Pin
- Roller Durometer: 85A
- Rollers: 6
- Weight: 0.27 lbs.
- Width Across Middle: 0.94 in.
CAD Files
am-4967 3IN Aluminum Omni 375IN Hex Bore (Single).STEP
Layout Prints
am-4967 3IN Aluminum Omni 375IN Hex Bore (Single).pdf
