3 in. Dualie Aluminum Omni Wheel With 3/8 Hex Bore

by AndyMark

$48.00 USD - $48.00 USD

$48.00 USD

$48.00 USD

$48.00 USD - $48.00 USD

$48.00 USD

The Dualie is a smoother version of Omni wheel typically used with FIRST Tech Challenge robots.

Description
What's in the Box?
Specifications
Documentation

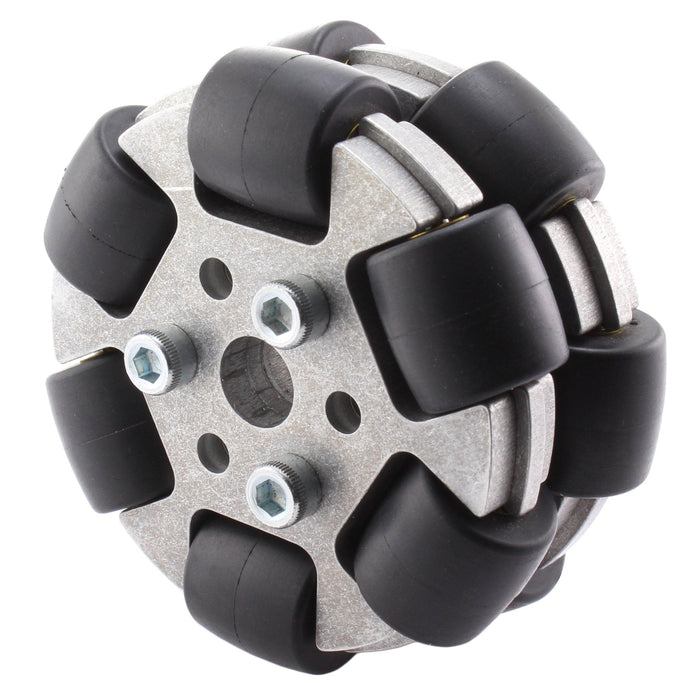

This is our 3 in. dualie aluminum omni wheel. This wheel features a 3/8 in. Hex Bore often used in FIRST Tech Challenge. For a more compact wheel, take a look at the 3 in. Omni Wheel, a variant of this design.

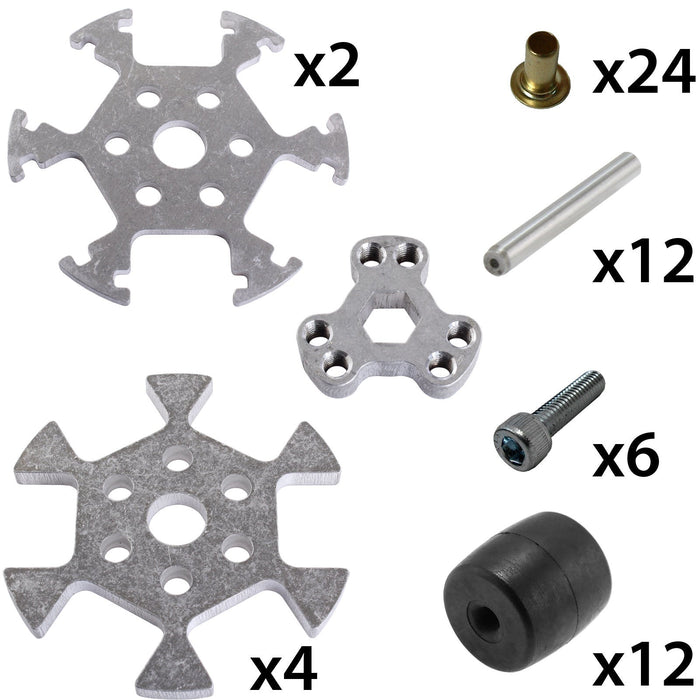

Included Items:
- 12 - Black SBR Omni Roller (am-0049a)
- 24 - Omni-Roller Sleeve (am-0050)
- 12 - 1x1/8 in. Steel Dowel Pin (am-1019)
- 6 -10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
- 2 - 3 in. Omni Wheel Inner Plate (am-4967_inner)
- 4 -3 in. Omni Wheel Outer Plate (am-4967_outer)
- 1 - 3 in. Omni Wheel Hex Hub (am-4967_hub)
- Bolt Pattern: 6 holes on a 1 in. dia. bolt circle
- Bore: 0.375 in. [9.5 mm] (3/8) Hex
- Diameter: 3 in.
- Load Capacity: 50 lbs. (rollers do not spin past this weight)
- Material: Aluminum, Brass
- Roller Axle: Steel Dowel Pin
- Roller Durometer: 85A
- Rollers: 12
- Weight: 0.5 lbs.
- Width Across Middle: 1.63 in.
CAD Files
am-4979 3IN Aluminum Omni 375IN Hex Bore (Dualie).STEP
Layout Prints
am-4979 3IN Aluminum Omni 375IN Hex Bore (Dualie).pdf
