32 DP 0.125 in. Round Bore Steel Pinion Gear for NeveRest

by AndyMark

$12.80 USD - $21.00 USD

$12.80 USD

$12.80 USD - $21.00 USD

$12.80 USD - $21.00 USD

$12.80 USD

Quantity

SKU

Description
Specifications
Documentation

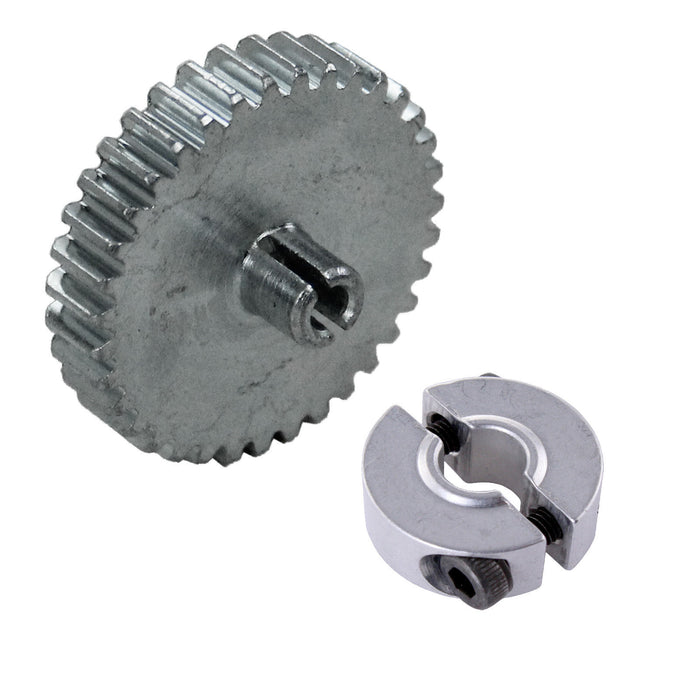

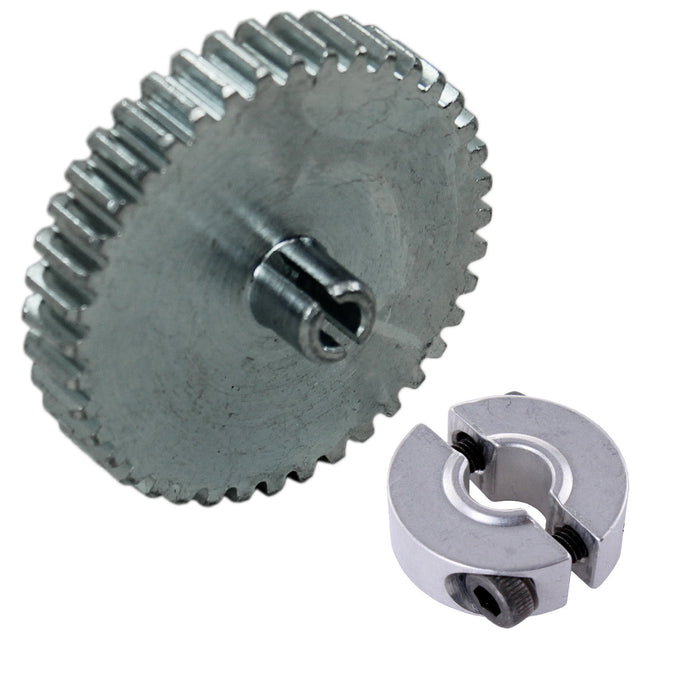

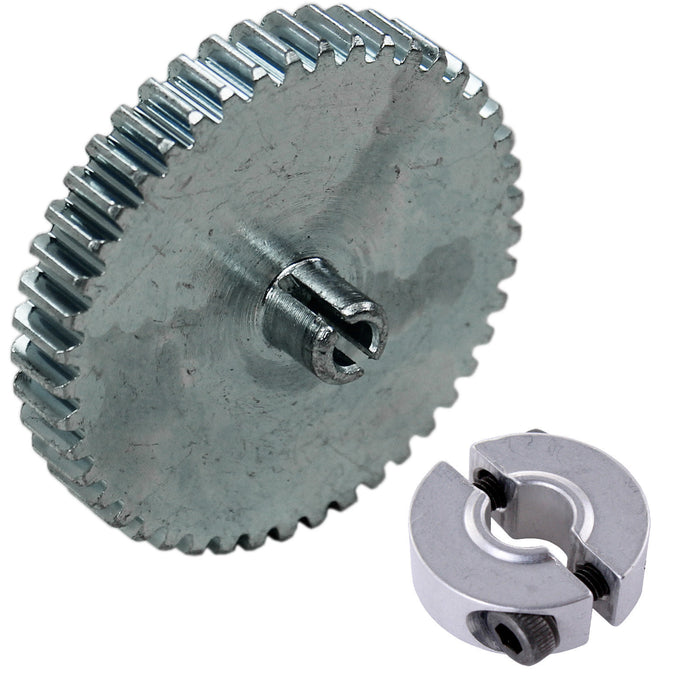

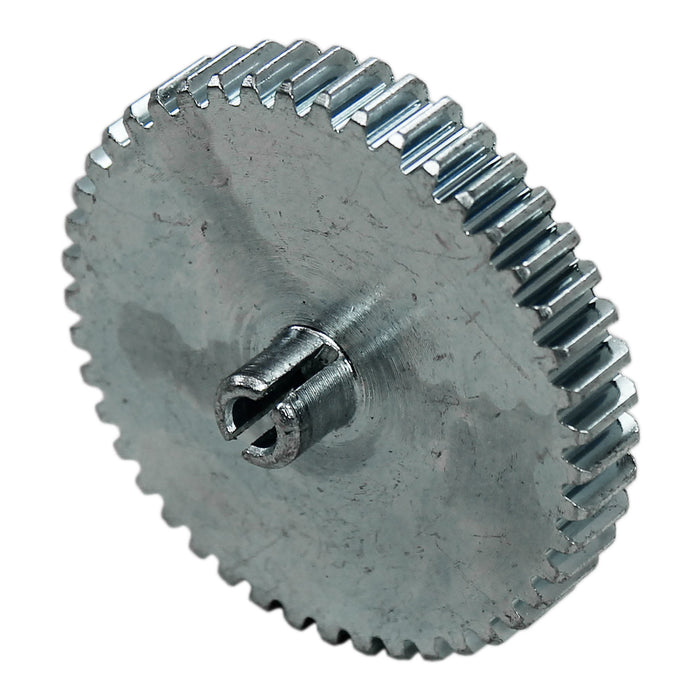

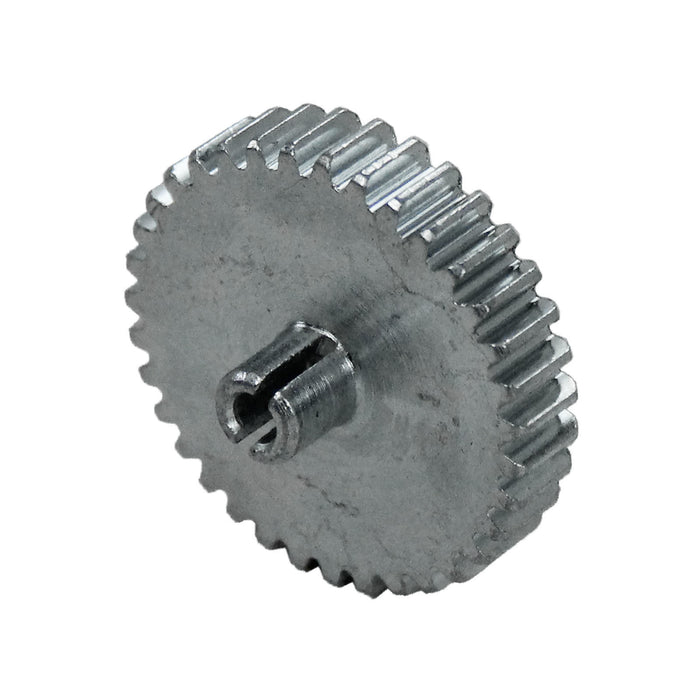

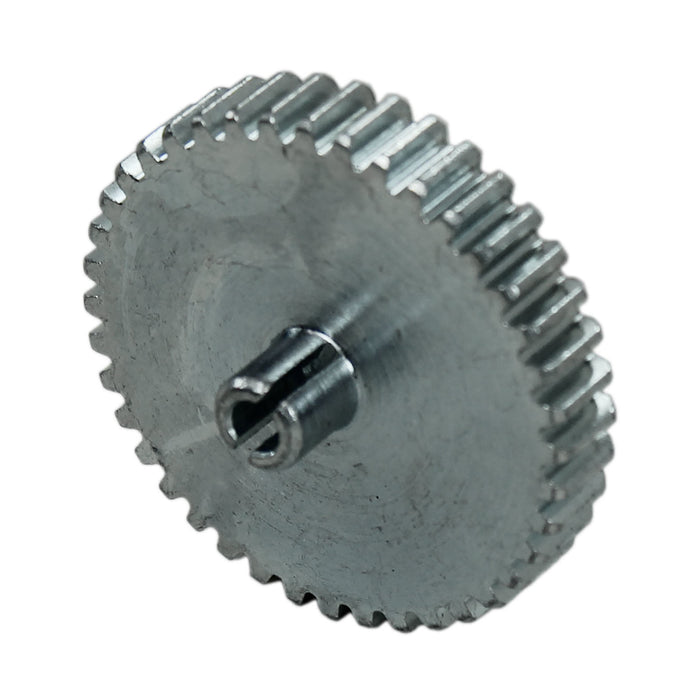

These gears with or without 6 mm Collar Clamps are installed onto a NeveRest Motor (am-3104) without any gearbox or pinion attached to the motor shaft. This gear can also be used with any motor with a 0.125 in. output shaft.
- Bore: 0.125 in. Round
- Diametral Pitch: 32
- Finish: Zinc Plated
- Material: 4140 Steel
- Pressure Angle: 20°
- Teeth: 35, 40, 45
- Thickness: 0.236 in.
CAD Files
am-3684 45t NR Pinion Gear Assembly.STEP
am-3683 40t NR Pinion Gear Assembly.STEP
am-3682 35t NR Pinion Gear Assembly.STEP
am-3203 45T 32DP 20PA NR Pinion Gear Only.STEP
am-3202 40T 32DP 20PA NR Pinion Gear Only.STEP
am-3201 35T 32DP 20PA NR Pinion Gear only.STEP
Layout Prints
am-3684 45t NR Pinion Gear Assembly.PDF
am-3683 40t NR Pinion Gear Assembly.PDF
am-3682 35t NR Pinion Gear Assembly.PDF
am-3203 45T 32DP 20PA PicoBox Turbo NR Pinion Gear.PDF
am-3202 40T 32DP 20PA PicoBox Turbo NR Pinion Gear.PDF
am-3201 35T 32DP 20PA PicoBox Turbo NR Pinion Gear.PDF
