35 Series 22 Tooth Round Aluminum Sprocket - am-0216 - migrated

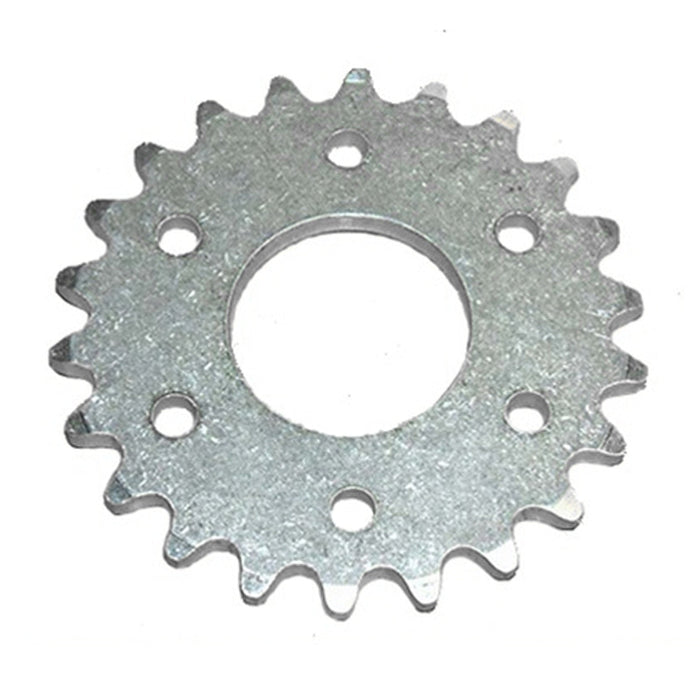

35 Series 22 Tooth Round Aluminum Sprocket

by AndyMark

$6.40 USD - $6.40 USD

$6.40 USD

$6.40 USD

$6.40 USD - $6.40 USD

$6.40 USD

35 series, large bore, 22 tooth

Specifications
Documentation

- Bolt Circle: 1.875 in. diameter, 0.206 in. diameter holes
- Inside Diameter: 1.1245 in.
- Material: 6061 Aluminum
- Outside Diameter: 2.836 in.
- Pitch Diameter: 2.638 in.
- Weight: 0.07 lbs.
CAD Files
am-0216 22T 35 Chain Bearing Bore Sprocket.STEP
Layout Prints
am-0216 22T 35 Chain Bearing Bore Sprocket.PDF
