This product has been replaced by am-4186
35 Tooth 20 DP 0.375 in. Hex Bore Steel Gear - am-0140 - migrated

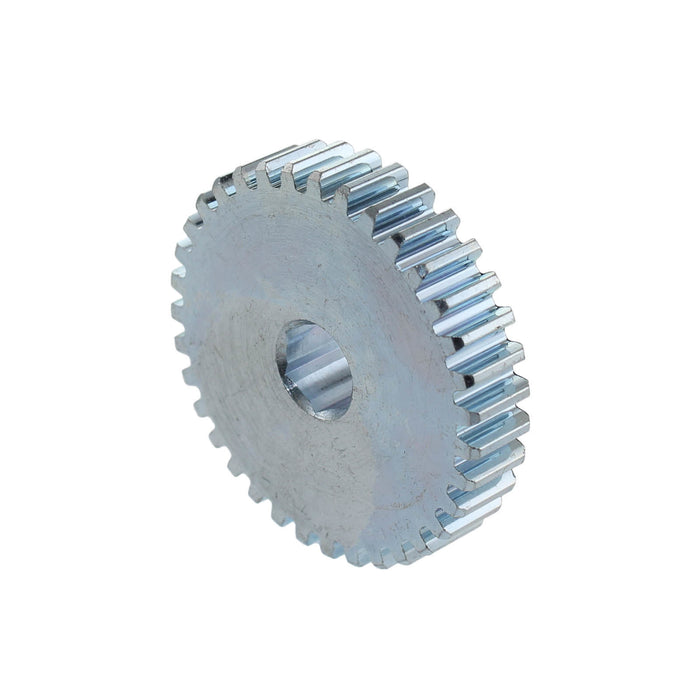

35 Tooth 20 DP 0.375 in. Hex Bore Steel Gear

by AndyMark
Save 53% Save 53%
$16.00 USD
$16.00 USD - $16.00 USD
$16.00 USD
$7.50 USD
$7.50 USD - $7.50 USD
$7.50 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-4186

This product is currently unavailable for purchase

SKU am-0140
  • Description
  • Specifications
  • Documentation
  • The purpose of this gear is to be located on the shifting shaft of an AndyMark transmission (AM Shifter, Super Shifter). It is to be paired with a 28 (tooth) Small Output Gear. This is not a standard gear shipped with AndyMark transmissions. It is an optional part, as is the 28 Small Output Gear. The 28 Small Output Gear and the 35 Medium Cluster gear replace the standard set of Small Output Gear (35 tooth) and Medium Cluster Gear (28 tooth) on AndyMark transmissions.

    Gear Ratios:
    35 Medium Cluster Gear : 28 Small Output Gear --> 4:1 ratio between high and low gear on an AndyMark transmission (AM Shifter, Super Shifter). The standard ratio for these same transmissions are 2.56:1. This gear provides a TALLER ratio between high and low gear on these transmissions.
    • Bore: 0.375 in. [9.5 mm] (3/8) Hex
    • Diametral Pitch: 20
    • Face Width: 0.375 in.
    • Material: 4140 Steel
    • Pitch Diameter: 1.75 in.
    • Pressure Angle: 14.5°
    • Teeth: 35
    • Weight: 0.4 lbs.

  • CAD Files

    am-0140 35 Medium Cluster Gear.STEP

    Layout Prints

    am-0140 35 Medium Cluster GearREV2.PDF
