This product has been replaced by am-4117

375 Bearing Hub - am-0161 - migrated

375 Bearing Hub

by AndyMark

$19.50 USD

$19.50 USD - $19.50 USD

$19.50 USD

$9.00 USD

$9.00 USD - $9.00 USD

$9.00 USD

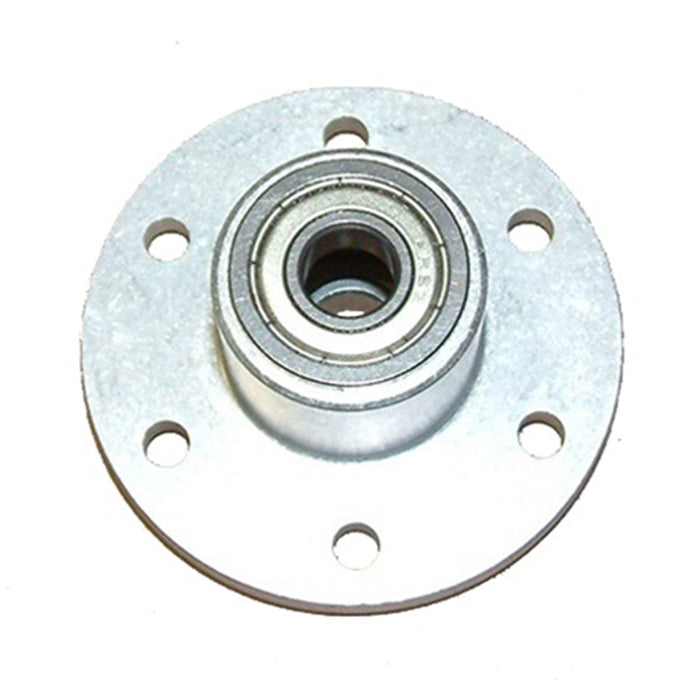

Our standard hub, with two shielded 0.375 in. bore flanged bearings included.

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-4117

Specifications
Documentation

- Bolt Circle: 0.2 in. diameter holes (6)
- Bolt Pattern: Six holes (0.17 in. diameter) on a 1.875 in. diameter bolt circle
- Bore: 0.375 in. Bearing Bore
- Flange Diameter: 2.4 in.
- Flange Thickness: 0.18 in.
- Hub Diameter: 1.2 in.
- Material: 6061 Aluminum
- Overall Thickness: 1 in.
- Weight: 0.4 lbs.
CAD Files
am-0161 375 Bearing Hub Flanged.STEP
