3785 ml Aluminum Air Reservoir - am-4963_1 - Image-1 - migrated

3785 ml Aluminum Air Reservoir

by AndyMark
Save 50% Save 50%
$95.00
$95.00 - $95.00
$95.00
$47.50
$47.50 - $47.50
$47.50
This aluminum Air Tank has a capacity of 1 gallon, or 3785 ml.
SKU am-4963
  • Description
  • Specifications
  • Documentation

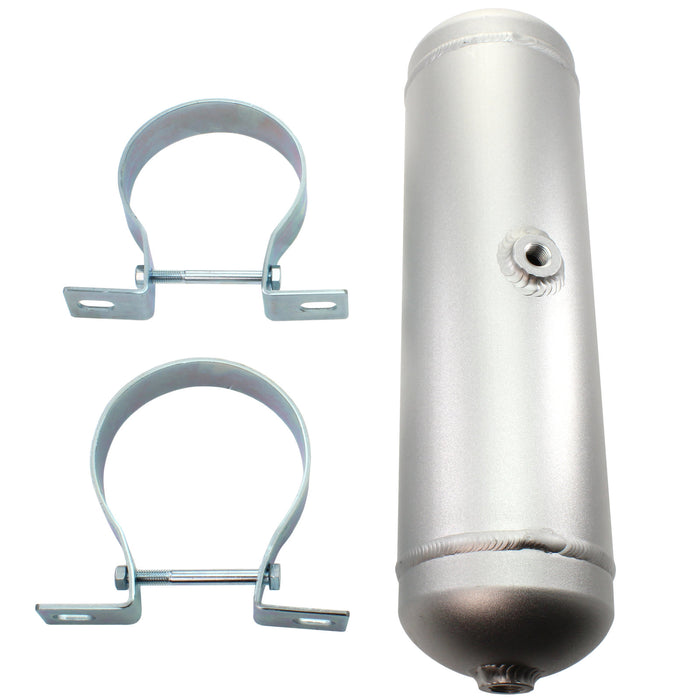

  • This is over 6 times more volume than our other plastic air tanks for less weight. This tank is also incredibly robust with it's welded and anodized aluminum construction.

    Optional steel mounting brackets are included with this product.

    Two of the ports are a less common 3/8 in. NPT size, so you may be interested in am-5206 to adapt them to 1/4 in. tube.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Capacity: 1 Gallon [3785 ml]
    • Diameter: 4 in.
    • Length: 16 in.
    • Material: Aluminum
    • Maximum Pressure: 170 psi
    • Port(s): Two 3/8 in. NPT on ends, one 1/4 in. NPT in center
    • Weight (Brackets): 1.4 lbs.
    • Weight (Tank): 1.96 lbs.

  • CAD Files

    am-4963 3785 ml Aluminum Air Reservoir Assembly.STEP

    Layout Prints

    am-4963 3785mL Aluminum Air Reservoir.pdf
