This product has been replaced by am-2361a
39 Tooth HTD Plastic Drive Pulley Kit - am-2361 - migrated

39 Tooth HTD Plastic Drive Pulley Kit

by AndyMark
$19.00 - $19.00
$19.00
$19.00
$19.00 - $19.00
$19.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-2361a

This product is currently unavailable for purchase

SKU am-2361
  • Description
  • Specifications
  • Documentation

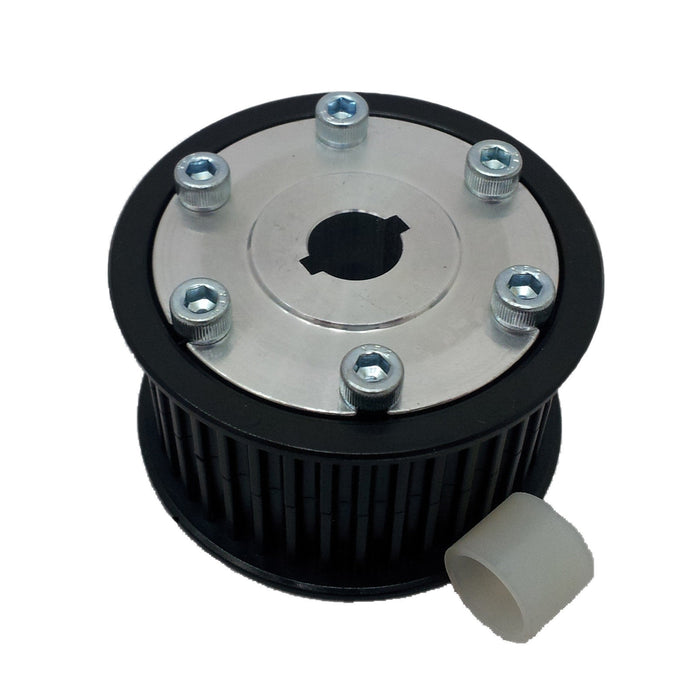

  • Here is a 39 tooth HTD profile pulley, fitting any two 15 mm wide HTD timing belts. This pulley can fit on the output shaft of a gearbox, if the shaft is 1/2 in. round with a 1/8 in. keyway. This is shipped as an un-assembled kit.
    • Belt Profile: 5 mm pitch HTD timing belt, 15 mm wide
    • Bore: 0.5 in. Round w/ keyway
    • Flange Diameter: 2.65 in.
    • Material: Aluminum bore, black polycarbonate pulley
    • Outside Diameter: 2.40 in.
    • Pitch Diameter: 2.44 in.
    • Teeth: 39
    • Weight: 0.32 lbs.
    • Width: 1.58 in.

  • CAD Files

    am-2361 39 tooth pulley assembly key bore.STEP

Customer Reviews

Based on 5 reviews
40%
(2)
60%
(3)
0%
(0)
0%
(0)
0%
(0)
N
N N
Good

top 10 bruh moment

C
CG from Piscataway
39 Tooth HTD Plastic Drive Pulley Kit (am-2361)

4 Stars

S
SW from West Valley City
Nicely made

Good product for converting your old chain drive robots to belt drive.

g
gs from el paso
Review

5 Stars

D
D
'Saves weight - Can I only buy the plastic?'

'Looks good, Would want to buy just the plastic and add a hex hub.
All want different sizes to change the ratio'
