This product has been replaced by am-3013a
40 Tooth 20 DP 0.5 in. Round Bore Aluminum Bolt Circle Bearing Gear for Swerve & Steer - am-3013_1 - Image-1 - migrated

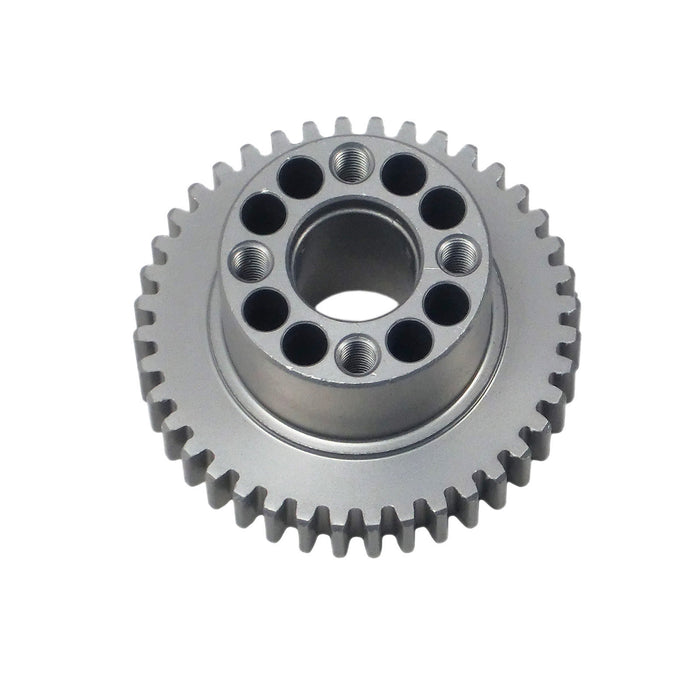

40 Tooth 20 DP 0.5 in. Round Bore Aluminum Bolt Circle Bearing Gear for Swerve & Steer

by AndyMark
$28.00 - $28.00
$28.00
$28.00
$28.00 - $28.00
$28.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-3013a

This product is currently unavailable for purchase

SKU am-3013
  • Description
  • Specifications
  • This 40 tooth aluminum gear is pivotal in steering the Swerve & Steer module. It mates with a 48 tooth gear which is driven from the PG71 gear-motor. The surface of this aluminum gear is treated with a very durable hard coat anodization to allow for wear. This gear receives a fairly low torque, and therefore aluminum is a good, lightweight material for it's use.
    • Bore: 0.500 in. [12.7 mm] (1/2) Round
    • Diametral Pitch: 20
    • Face Width: 0.4 in.
    • Finish: Hard Anodized
    • Material: 6061 Aluminum
    • Pitch Diameter: 2 in.
    • Pressure Angle: 14.5°
    • Teeth: 40
    • Thickness: 1.13 in.
    • Weight: 0.18 lbs.
