5 mm Hex Servo Hub - am-5439 - migrated

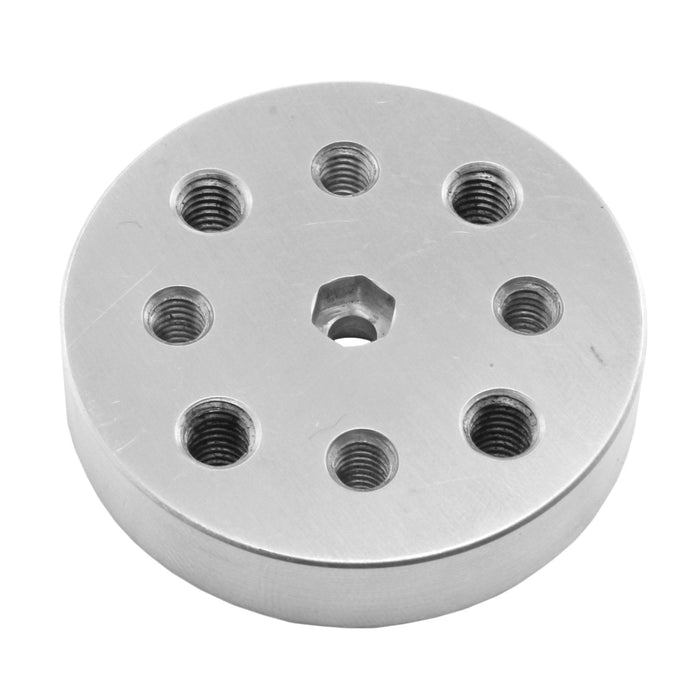

5 mm Hex Servo Hub

by AndyMark
Sold out
$9.60 USD - $9.60 USD
$9.60 USD
$9.60 USD
$9.60 USD - $9.60 USD
$9.60 USD
The 5 mm Hex Servo Hub is a great way to mount components to our AndyMark Programmable Servos.
SKU am-5439
  • Description
  • Specifications
  • Documentation

  • The 5 mm Hex Servo Hub is a great way to mount components to our AndyMark Programmable Servos. These hubs accept a 5 mm hex input and are compatible with the Robits hole pattern (#10 holes on a 1/2 inch pitch) as well as those found on other FTC based (M4 holes on a 16mm grid). This hub allows for a lower profile and higher load mounting option than our other offerings.

    • Bolt Pattern: Four 10-32 holes on a 1 in. bolt circle, four M4 holes on a 16mm grid
    • Bore: 5 mm Hex
    • Diameter: 1.5 in.
    • Material: Aluminum
    • Thickness: 0.315 in. [8 mm]

  • CAD Files

    am-5439 5mm Hex Servo Hub.STEP

    Layout Prints

    am-5439 5mm Hex Servo Hub.pdf
