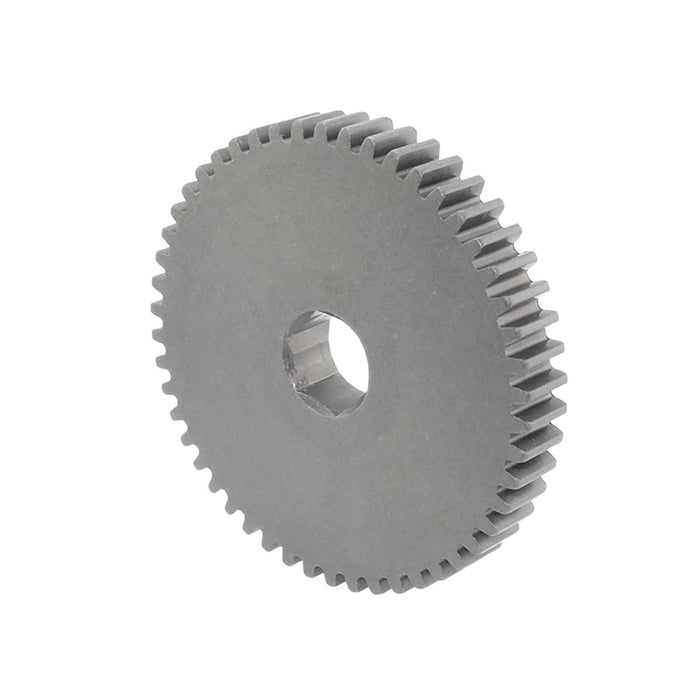

50 Tooth 20 DP 0.5 in. Hex Bore Aluminum Gear

by AndyMark

Sold out

$20.00

$20.00 - $20.00

$20.00

$11.00

$11.00 - $11.00

$11.00

Description
Specifications
Documentation

This part can replace the steel Large Output Gear on the Toughbox, and save 0.28 Lbs.
- Bore: 0.500 in. [12.7 mm] (1/2) Hex
- Diametral Pitch: 20
- Finish: Nituff Anodized
- Material: 6061 Aluminum
- Pitch Diameter: 2.5 in.
- Pressure Angle: 14.5°
- Teeth: 50
- Thickness: 0.342 in.
- Weight: 0.2 lbs.
CAD Files
am-0521 50 Tooth 20 dp Aluminum Gear 500 Hex.STEP

50 Tooth 20DP 0.5 in. Hex Bore, Aluminum Gear

Andymark had what I needed in stock, the quality was exactly what I expected and the delivery was timely. Couldnt ask for more.

Keep the weight down

well made gear. very light. Thanks Jerry for all the support on these parts.

Aluminum is 1/3 weight of steel

Will be using on my new Gearbox!
