This product has been replaced by am-0211a

500 Key Long Output Toughbox Nano Shaft

Name: 500 Key Long Output Toughbox Nano Shaft
Brand: AndyMark
SKU: am-0535
Price: 9.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

by AndyMark

Save 57%

$21.00 USD

$21.00 USD - $21.00 USD

$21.00 USD

$9.00 USD

$9.00 USD - $9.00 USD

$9.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-0211a

Description
Specifications
Documentation

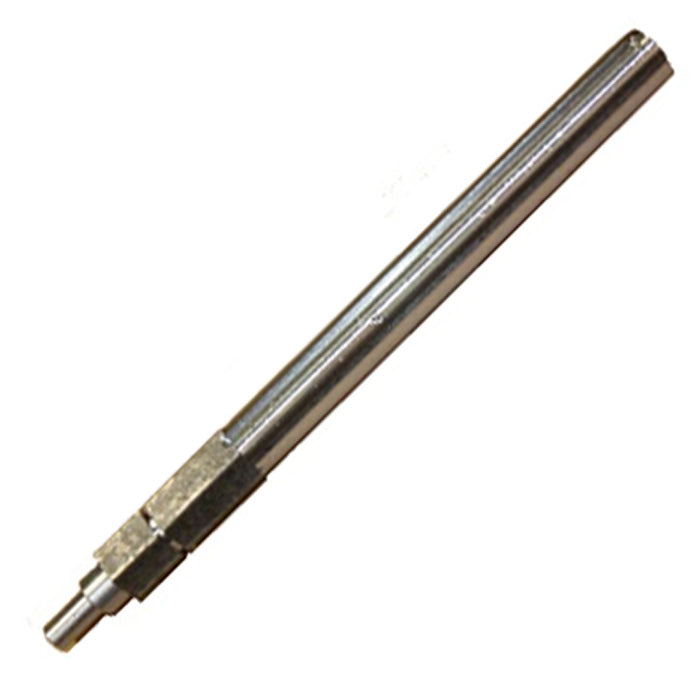

This 1/2 in. keyed output shaft was one of the options for the now discontinued Toughbox Nano gearbox. This shaft can be used in other Toughbox Series gearboxes, but requires a 1/2 in. hex output bearing.
- Diameter of Large End: 0.499 in.
- Diameter of Small End: 0.249 in.
- Large End Includes: 1/8 in. keyway and a 1/4-20 tapped hole
- Material: 4140 Steel
- Overall Length: 6.75 in. (3 in. longer than the standard shaft)
- Weight: 0.5 lbs.
CAD Files
am-0535 500 Key Long Output Shaft for Toughbox Nano (2).STEP
Layout Prints
am-0535 500 Key Long Output Shaft for Toughbox Nano.pdf

Not Returnable

This product is not eligible for returns. All sales are final.

500 Key Long Output Toughbox Nano Shaft

CAD Files

Layout Prints

Not Returnable
