6 Gauge 12 Inch Battery Cable

Name: 6 Gauge 12 Inch Battery Cable
Brand: AndyMark
SKU: am-0009
Price: 21.0 USD
Availability: InStock
Rating: 4.84 (57 reviews)

by AndyMark

$21.00 - $21.00

$21.00

$21.00 - $21.00

$21.00

This is the standard FRC Battery Cable.

Quantity

SKU am-0009

Description
Specifications
Documentation

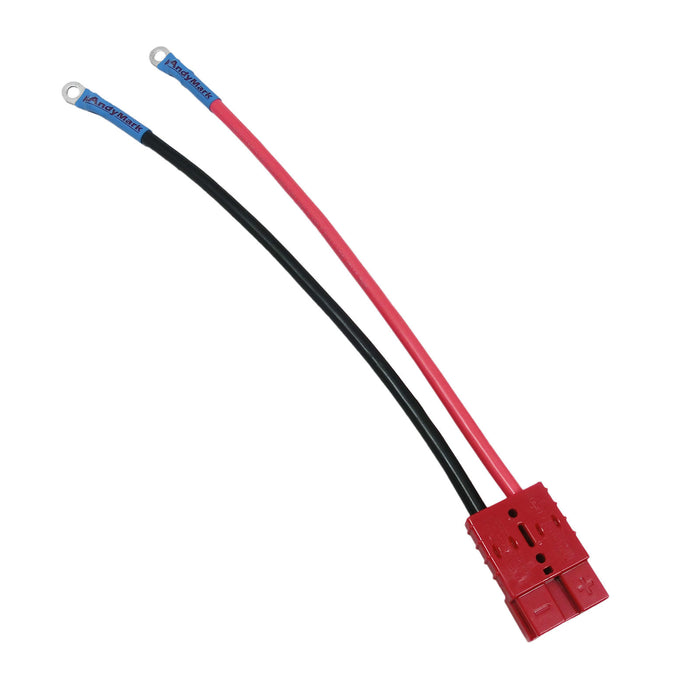

Tip-to-tip length is approximately 12.6 inches. Want it longer or shorter? We offer this cable in custom lengths! Both end connectors are crimped with a 6-ton pneumatic crimping tool. One end has connections to attach to the battery and the other has an SB50 Anderson Connector. This cable is resistant to oil, most acids, grease, and even abrasion! That's a TOUGH cable.
Which do you prefer a stiff cable or a flexible cable? No matter your choice we have the best option in either camp. PVC insulated cables create a stiff wire route maintaining shape for repeatable connections. EPDM jacketed cables cand bend and twist to accommodate tight spaces and small places.
- Connector: SB50, 1/4 in. Ring Terminal
- Gauge: 6 AWG
- Insulation: PVC or EPDM
- Operating Temperature: 257°F to -59°F
- Stranding: 263 inside EPDM Jacketed Wire
- Voltage: 60 V Max
- Wire Type: Stranded
Guides
am-0009 Replacing Wires in a SB50 Connector_.pdf
Layout Prints

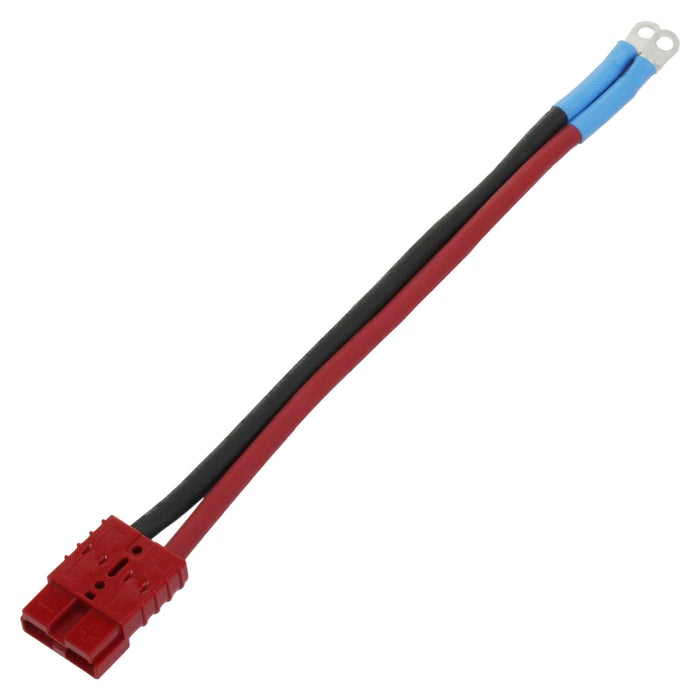

am-4483 6 Gauge 12 Inch Battery Cable, Flexible EPDM.pdf

6 Gauge 12 Inch Battery Cable

Great cables

These are really flexible and durable. Highly recommend

Battery cable

First off I like the fact that these are more bendable than the others and that was the reason why I chose to spend the extra money on them. Unfortunately though I found that the connector on the end that then goes into the breaker gets stuck in the inside and is almost impossible to pull apart. Which is not ideal when you are trying to make a quick swap to get back on the field. We almost went into our match with a used battery. Once unstuck I ended up stealing an old cable from a not as good battery and not even using this cable. Very disappointed.

Much nicer than the KOP cable

Needed a few cables in a hurry because our old ones were starting to fail. These are so much nicer than the kit of parts cables. The stranding in the wires is finer which makes them much more flexible. We will probably replace all of our cables with these. Highly recommend. Just make sure when you are buying cables that you get the correct Anderson connector. The kit of parts connector is an SB50. AndyMark also sells a cable with the SB120 connector which is much larger with a heavier gauge cable. Be sure to order the one that matches your application

Holes at end of cables are too small for batter...

Holes at end of cables are too small for battery posts. Had too file too make bigger. This is 2nd order of battery cable and had same problem with 2 different battery’s.

Thank you for your feedback. The design intent of these holes is to be a tight fit for the screws that attach the cable to the battery posts.
