6 mm D-Bore XL Double Boss Nub w/Set Screw - am-3441a - migrated

6 mm D-Bore XL Double Boss Nub w/Set Screw

by AndyMark
Sold out
$8.75 - $8.75
$8.75
$8.75
$8.75 - $8.75
$8.75
SKU am-3441a
  • Description
  • Specifications
  • Documentation

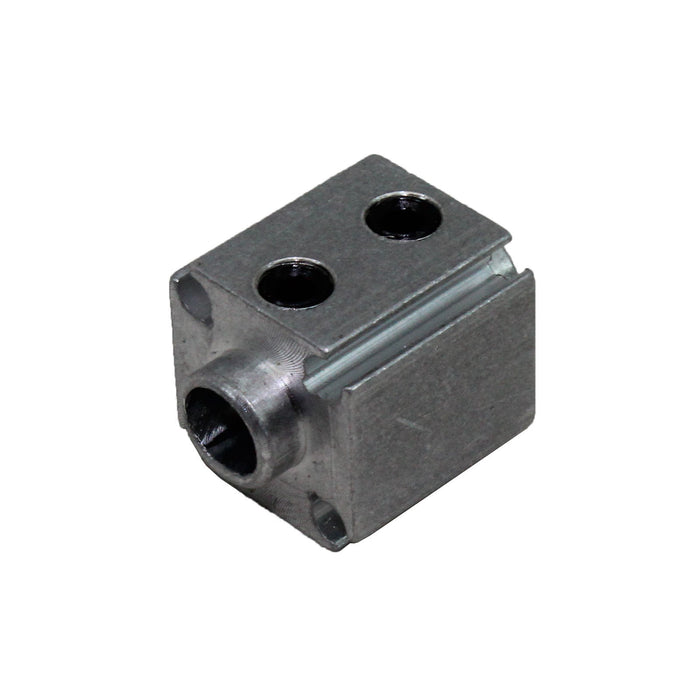

  • The nub is a series of hubs intended to connect motion components to spinning shafts, like sprockets gears, pulleys and wheels. It supports the output shaft of the AndyMark NeveRest motors as well as the other motors on the market. It supports the AndyMark 6 mm D shafts for robust motion systems and impeccable torque transfer.
    The four mounting holes on these nubs are sized at 0.128 in. diameter, with the intention of accepting a #6-32 threaded screw. They are not tapped, but can be tapped by most machine screws due to this diameter.
    • Bore: 6 mm D
    • Height: 0.625 in.
    • Length: 0.625 in.
    • Material: 6105-T5 Aluminum
    • Set Screw: Holes sized for 10-32 Set Screw (Set Screw Included)
    • Weight: 0.05 lbs.

  • CAD Files

    am-3441a 6mmD Double Boss XL Nub REV2.STEP

    Layout Prints

    am-3441a 6mmD Double Boss XL Nub REV2.PDF
