This product has been discontinued.

8 in. Aluminum Dualie Omni Wheel

Name: 8 in. Aluminum Dualie Omni Wheel
Brand: AndyMark
SKU: am-0559
Price: 117.0 USD
Availability: InStock
Rating: 5.0 (2 reviews)

by AndyMark

$117.00 USD - $117.00 USD

$117.00 USD

$117.00 USD - $117.00 USD

$117.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

Description
Specifications
Documentation

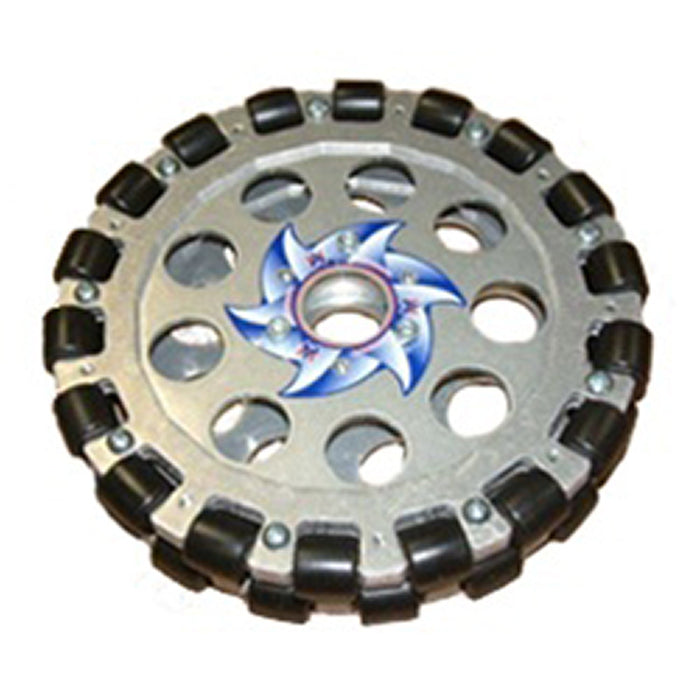

8" Aluminum Dualie Omni Wheel

These wheels combine the best features of the AndyMark Trick Wheels with the AndyMark plastic omni wheels. They are light and durable. They will bend under a severe impact, but can be easily repaired. The center bore is sized to receive a 1+1/8 in. diameter flange bearing (FR8ZZ or am-0573) in a press fit manner.

Included Hardware:
- Four - 8 in. Outer Aluminum Onmi Rings
- Two - 8 in. Inner Aluminum Omni Plate
- Thirty-Six - Black SBR Rollers
- Thirty-Six - Steel Dowel Pins
- Seventy-Two - Brass Omni-roller Sleeves
- Thirty-Six - Individual #10-32x3/8 in. Button Head Phillips Screws
- One - Aluminum Omni Spacer
- Six - Individual #10-32x1/2 in. SHCS
Usage:
With Bearing:
- Wheels can be driven by 1 hub or they can ride on two 1/2 in. id ball bearings (FR8ZZ). These need to be purchased separately if this wheel is purchased.
- Bolt Pattern: 6 hole on a 1.875 in. diameter bolt circle
- Bore: 1.124 in. Round
- Diameter: 8 in.
- Load Capacity: 100 lbs.
- Roller Axle: Steel Dowel Pin
- Roller Durometer: 80A
- Rollers: 36
- Weight: 2.1 lbs.
- Width Across Middle: 0.925 in.
CAD Files
am-0559 8in Dual Aluminum Omni.STEP
Guides
am-0559 8-inch Aluminum Dualie Omni Wheel Assembly Instructions AM-0559.pdf
