This product has been replaced by am-0474a

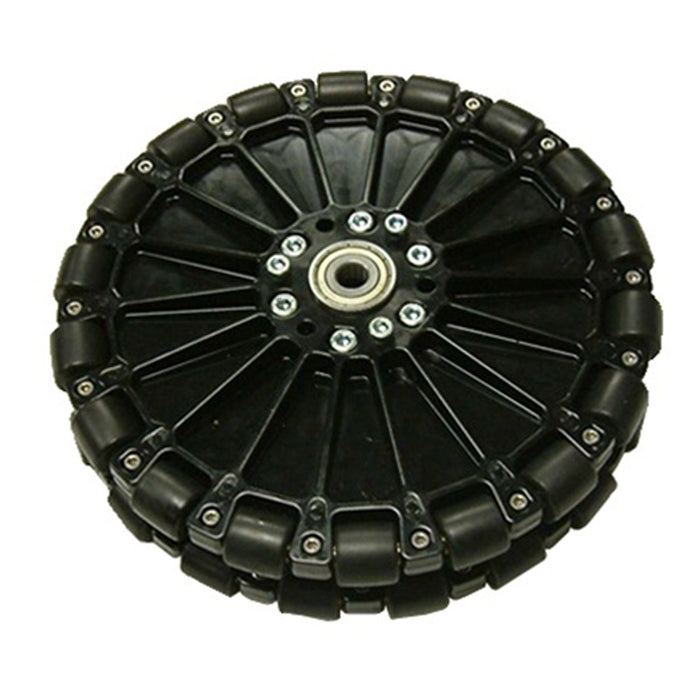

8 in. Dualie Plastic Omni Wheel w/ 3/8 in. Bearings

Name: 8 in. Dualie Plastic Omni Wheel w/ 3/8 in. Bearings
Brand: AndyMark
SKU: am-0474
Price: 74.0 USD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

by AndyMark

$74.00 - $74.00

$74.00

$74.00 - $74.00

$74.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-0474a

Description
Specifications
Documentation

8 in. Dualie Plastic Omni Wheel

Included Hardware:
- Four - 8 in. Plastic Omni Wheel Webs
- Thirty-Six - Black SBR Rollers
- Thirty-Six - 1x1/8 Steel Dowel Pins
- Sixty-Four - Omni-roller Sleeves
- Nine - Individual M5x0.8 x 20mm SHCS
- Twelve - Individual M5 Nylock Nuts
- Three - Individual #10-32 x 2-1/4 in. SHCS
- Thirty-Six - Individual M3 Nylock Nuts
- Thirty-Six - Individual M3 x 10mm SHCS
- Three - 1614ZZ 3/8 in. id Bearings
Usage:
With Sprocket:
- If you wish to drive this wheel with a sprocket, then the sprocket needs to be attached to the side of the wheel, and one ball bearing needs to be pressed into the wheel (on one side). For 1/2 in. id, use two am-0029 bearings and two am-0030 bearings. For 3/8 in. id use four am-0209 bearings.
With Bearings:
- One ball bearing needs to be pressed into the wheel (on each side, totaling 4). For 1/2 in. id, use two am-0029 bearings and two am-0030 bearings. For 3/8 in. id use four am-0209 bearings.
Made in the USA:
Bearings and screws were not made in the USA. All other components were designed, manufactured and assembled in the United States of America.
- Bolt Pattern: 6 hole on a 1.875 in. diameter bolt circle
- Bore: 1.125 in. Round
- Diameter: 8 in.
- Load Capacity: 120 lbs. (rollers don't spin past this weight)
- Material: Black Polycarbonate, Brass
- Roller Axle: Steel Dowel Pin
- Roller Durometer: 80A
- Rollers: 36
- Weight: 2.7 lbs.
- Width Across Middle: 2.04 in.
Guides
am-0474 8-inch Plastic Dualie Omni Wheel Assembly Instructions AM-0474.pdf
