8 in. HD Pneumatic Wheel Cores

by AndyMark

$39.00 USD - $40.00 USD

$39.00 USD

$39.00 USD - $40.00 USD

$39.00 USD - $40.00 USD

$39.00 USD

These hubs form the core of the 8 in HD pneumatic wheels.

Quantity

SKU

Description
Specifications
Documentation

These are machined cores from our 8 in. HD Pneumatic Wheels . The hubs are made from the same extrusion that we have made our 4in. Performance Wheels from since 2017. In order to use these products with pneumatic tires and tubes, they must be used in conjunction with two HD Pneumatic Wheel Rims and twelve 10-32 BHCS in order to retain the tire and tube.

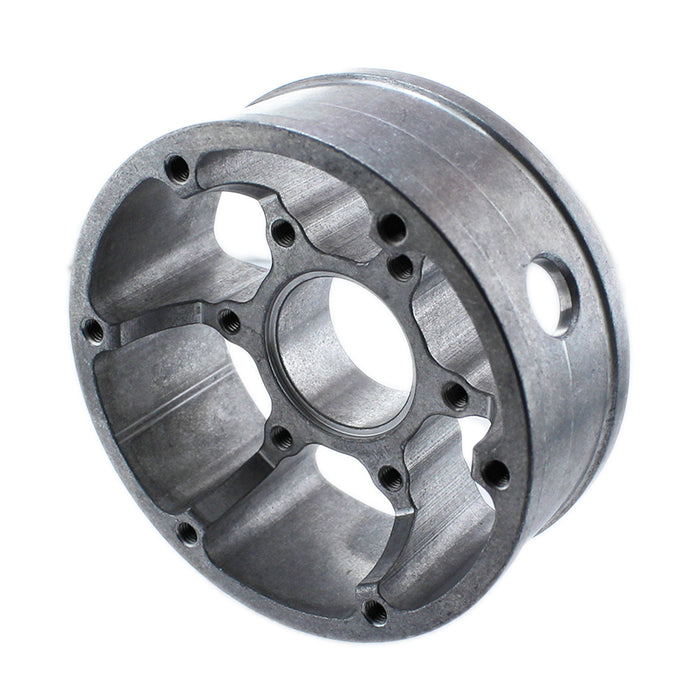

Specifications for am-3931:
- Bore: 1.124 in. Round
- Weight:0.4 lbs

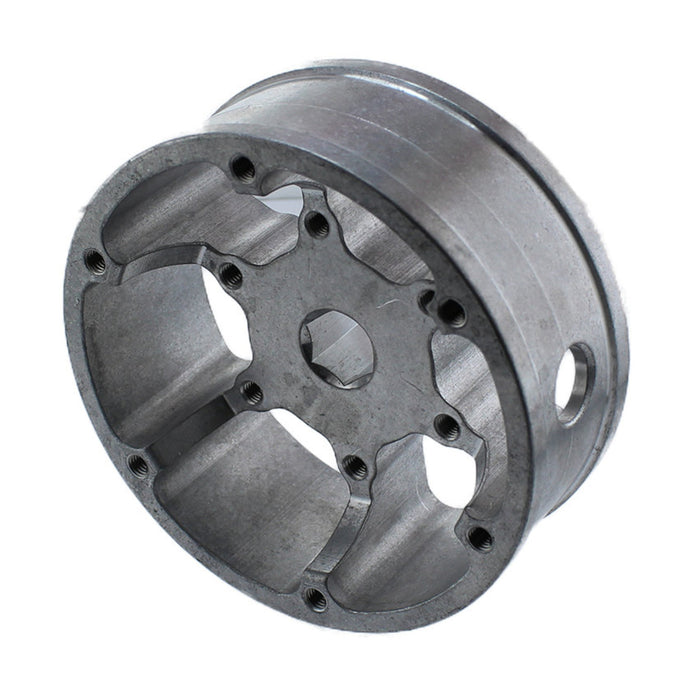

Specifications for am-3932:
- Bore: 0.50 in. Hex
- Weight: 0.5 lbs
- Bolt Pattern: Six 10-32 Holes on a 1.875 in. Circle, Six 10-32 Holes on a 3.25 in. Bolt Circle
- Material: 6061-T6 Aluminum
- Overall Diameter: 3.72 in.
- Overall Width: 1.7 in.
CAD Files
am-3932 Aluminum 8IN Pneumatic Wheel 500IN Hex BoreCore.STEP
am-3931 Aluminum 8IN Pneumatic Wheel Bearing BoreCore.STEP
Layout Prints
am-3932 Aluminum Pneumatic Wheel 500IN Hex Bore Core.PDF
am-3931 Aluminum Pneumatic Wheel 1.125IN Bearing Bore Core.PDF
