9015 Motor

by AndyMark
Sold out
$15.00 - $15.00
$15.00
$15.00
$15.00 - $15.00
$15.00
SKU am-0912
  • Description
  • Specifications
  • Documentation

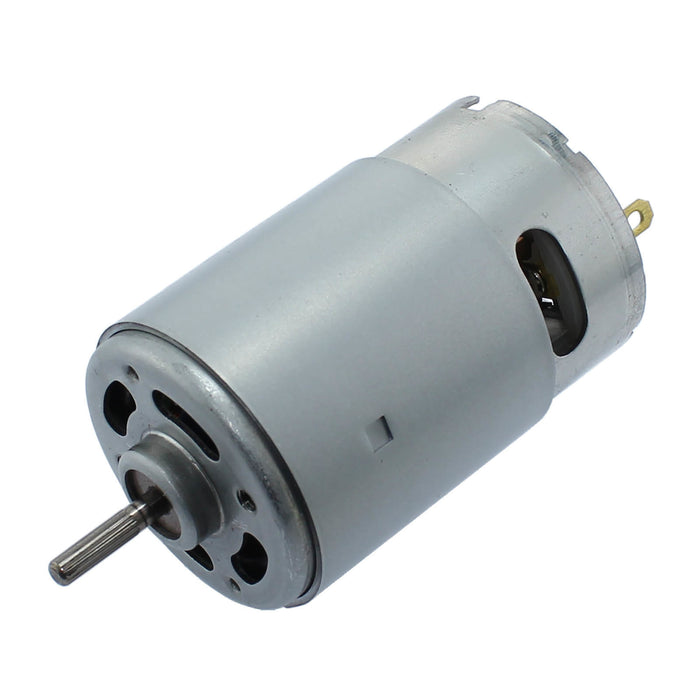

  • This is the CCL 9015 motor, and is a "RS-500 series" DC motor. This size motor is popular in many consumer products. There is NO gear included with this motor.

    This motor has a manufacturing sticker on it (this sticker may be under the AndyMark sticker), saying these things:
    DB-30F-2005
    12VDC AOM
    RoHS
    A 16t 0.7 Module pinion (am-3783) is available for use with this motor to enable use of a 57 Sport Gearbox. Additional pinion gears are also available for other use cases.
    • Bolt Pattern: 2 M3 x 0.5 tapped holes, centered, 0.984 in. apart
    • Maximum Power: 179 W at 32.5 A
    • Motor Body Length: 2.24 in.
    • No Load Current: 1.2 A
    • No Load RPM: 16000 RPM
    • Output Shaft Diameter: 0.125 in.
    • Overall Length: 3.19 in.
    • Stall Current: 63.8 A
    • Stall Torque: 0.316 ft-lb [0.428 N-m]
    • Terminals: 0.15 in. wide spade connectors (2)
    • Voltage: 12 VDC
    • Weight: 0.5 lbs.

  • CAD Files

    am-0912 CCL-9015-Motor.STEP

    Layout Prints

    am-0912 CCL-9015-motor-layout.pdf

    Datasheets

    am-0912 CCL-9015-motor-curve.pdf
