This product has been replaced by Climber in a Box
AfterBurner Winch - am-3344a_1 - Image-1 - migrated

AfterBurner Winch

by AndyMark
$245.00 - $245.00
$245.00
$245.00
$245.00 - $245.00
$245.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by Climber in a Box

This product is currently unavailable for purchase

SKU am-3344a
  • Description
  • Documentation

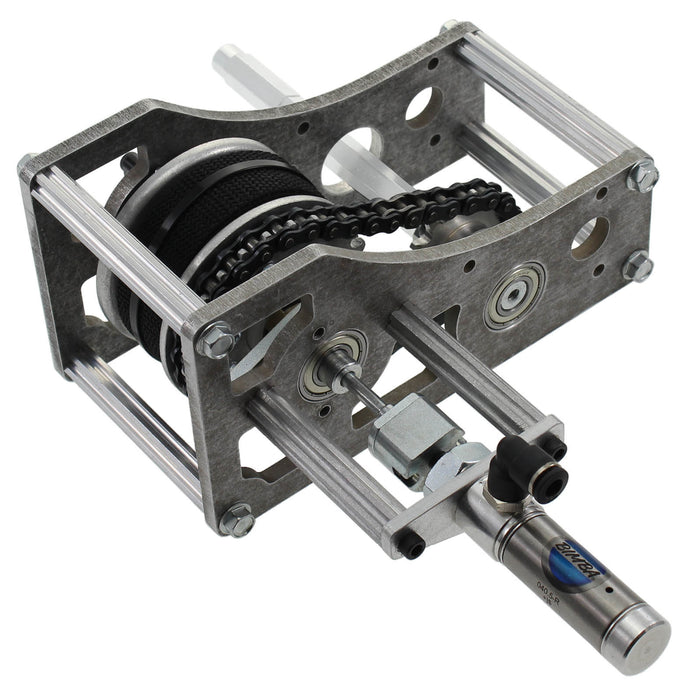

  • Sometimes, you just need a winch! Our Afterburner Winch Kit mounts easily to the Rocketbox PTO to provide an additional 15:24 reduction and a ~1.5in. winch drum for your robot's needs. This winch bolts onto the the RocketBox and interfaces with the Mechanism Output Shaft of the gearbox via a sprocket and chain reduction to provide a winching solution for various mechanisms. This winch also features an integrated lock-out plate and cylinder to create a locking, non-backdrivable winch solution. This allows your robot to save weight by using your drive motors for high-load tasks like retracting a climber or cocking back a shooter in situations where you don't need to drive at the same time. You can also pop in 2 hex bearings and drive the input sprocket with any hex shaft.

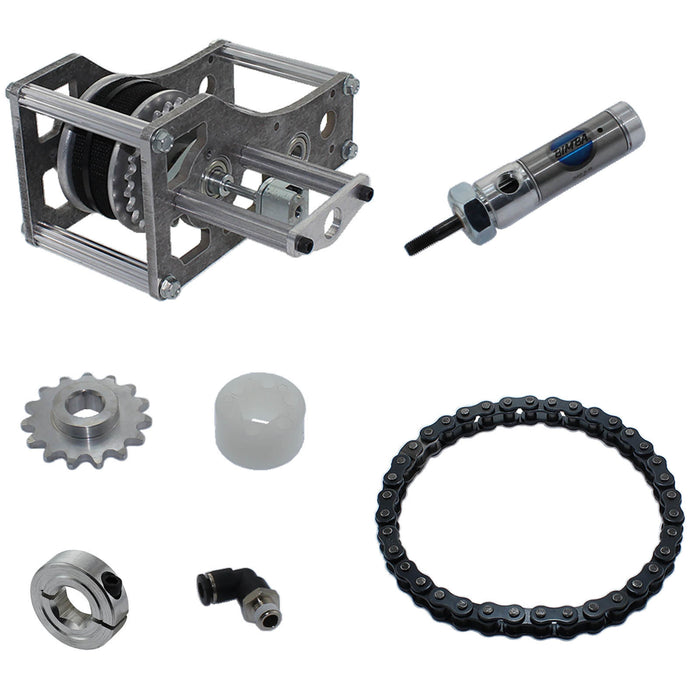

    This new kit features the 4 tooth dog found in the EVO with a new 4 tooth lockout plate, as well as a pre-made chain loop so that this is as fully assembled as possible letting you hit the ground running as soon as you open the box.

  • CAD Files

    am-3344a AfterBurner Winch Kit with 4 Tooth Dog.STEP

    Layout Prints

    am-3344a AfterBurner Winch Kit 4 tooth Dog.PDF
