This product has been discontinued.
AfterBurner Winch Shaft - am-3347_1 - Image-1 - migrated

AfterBurner Winch Shaft

by AndyMark
$19.00 USD
$19.00 USD - $19.00 USD
$19.00 USD
$10.00 USD
$10.00 USD - $10.00 USD
$10.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-3347
  • Description
  • Specifications
  • Documentation

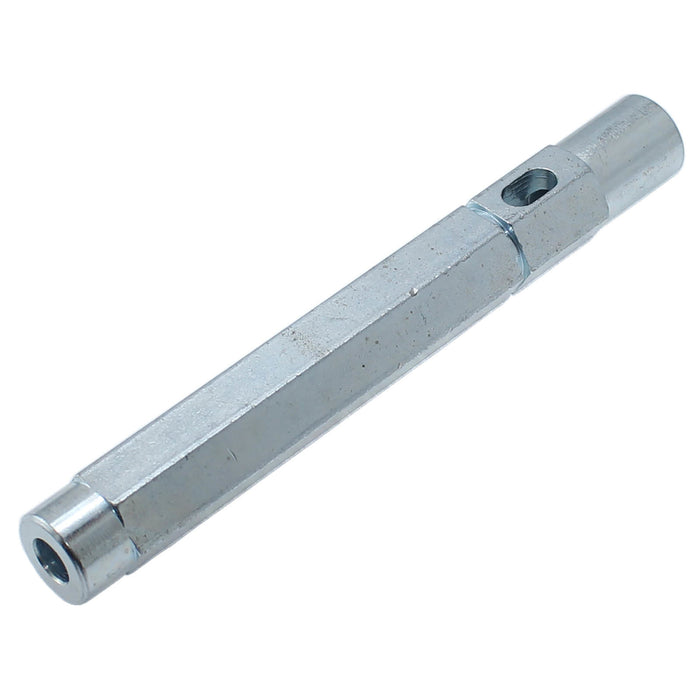

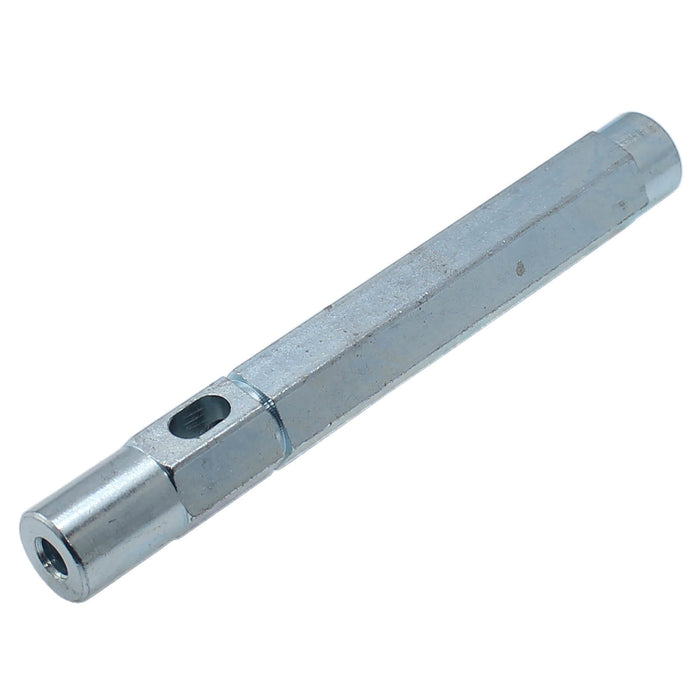

  • This shaft was originally used in our After Burner PTO. This shaft may find a use in your custom gearbox application. This shaft is intended to be used as a part of a shift mechanism. The shaft has a 0.188 in. long through-slot to be used with a shift assembly.

    • Finish: Zinc Plated
    • Length (Long Hex): 2.585 in.
    • Length (Long Round): 0.63 in.
    • Length (Short Hex): 0.607 in.
    • Length (Short Round): 0.313 in.
    • Material: 4140 Steel
    • Overall Length: 4.194 in.
    • Weight: 0.221 lbs.

  • CAD Files

    am-3347 Shift Shaft for Afterburner.STEP

    Layout Prints

    am-3347 Shift Shaft for Afterburner.PDF

Not Returnable

This product is not eligible for returns. All sales are final.
