AM Mag Encoder

by AndyMark
$45.00 - $45.00
$45.00
$45.00
$45.00 - $45.00
$45.00
This encoder can be used with any 775 motor, such as the AndyMark RedLine Motor.
SKU am-3749
  • Description
  • Specifications
  • Documentation

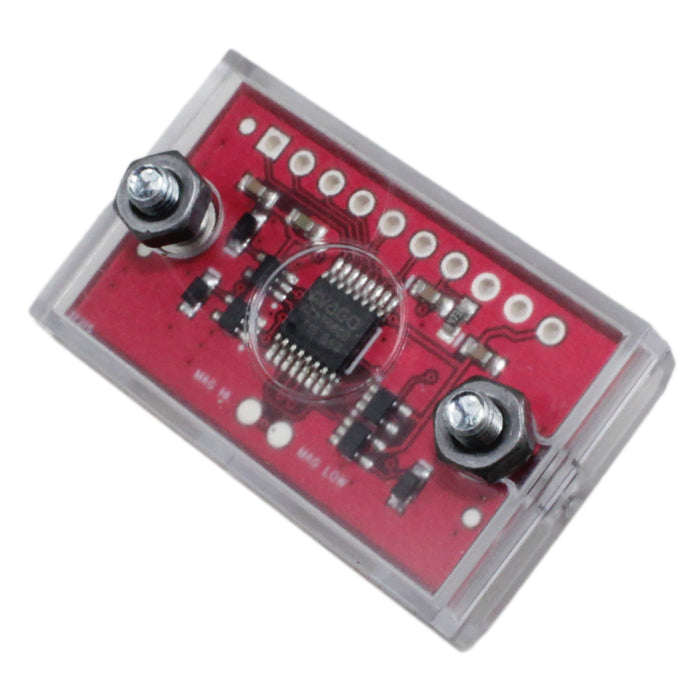

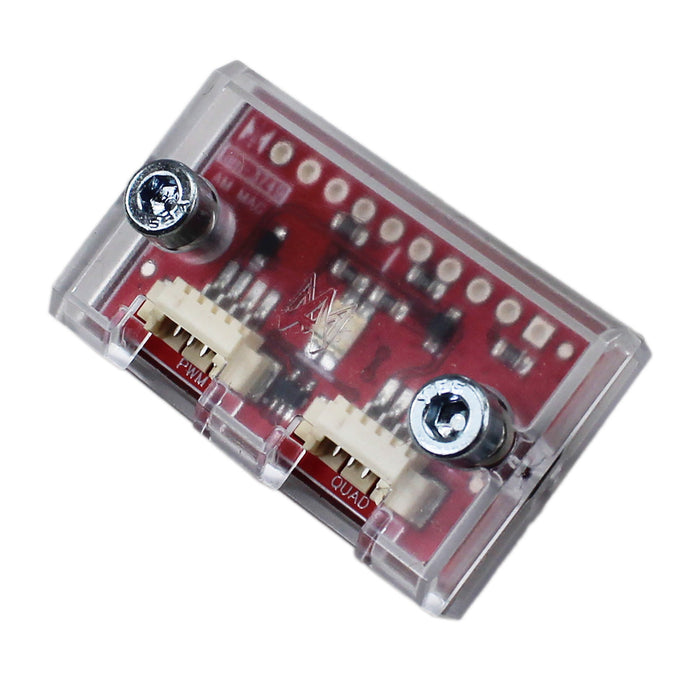

  • The AM Mag Encoder is designed for a wide range of uses. This is the fastest encoder AndyMark sells with a rating of ~30,000 RPM. It features a 1024 quadrature encoder output, an index pulse, and a pulse width varied position output. The board provides mounting for M3 screws, spaced 1 in. apart.

    With the RedLine Encoder Kit (am-3773), this encoder can be added to any 775 motor with a 5 mm back shaft, such as the AndyMark RedLine Motor.


    Code Examples:


    PWM Pinout

    Quadrature Pinout
    • Output: 1024 CPR, Index, PWM Position
    • Voltage: 5 VDC
    • Weight: 0.0175 lbs.

  • Layout Prints
