AM14U3 Chassis - am-14u3 - migrated

AM14U3 Chassis

by AndyMark

$656.00 USD - $656.00 USD

$656.00 USD

$656.00 USD

$656.00 USD - $656.00 USD

$656.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-14U4

Description
Specifications
Documentation

THIS PRODUCT IS OBSOLETE AND HAS BEEN UPGRADED. PLEASE GO HERE FOR THE LATEST VERSION: /am-14U4

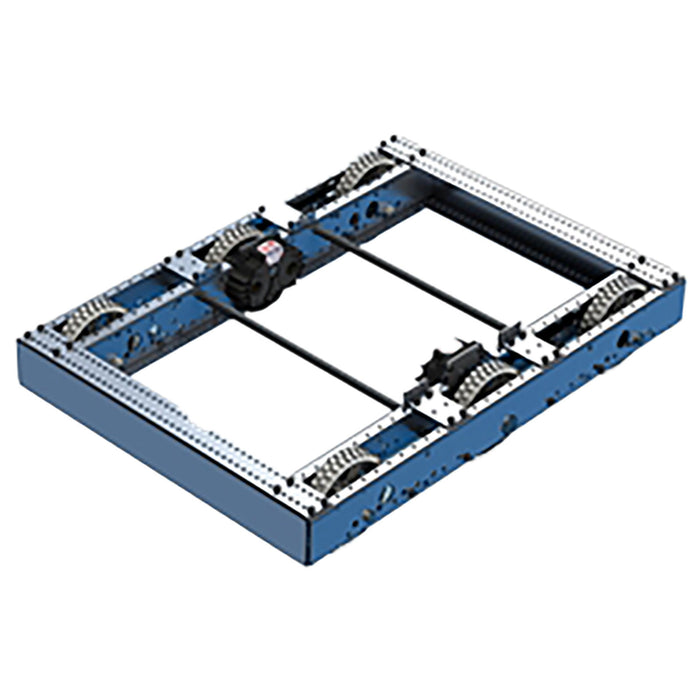

This chassis is the same as the one in the 2016, 2017 and 2018 FIRST Robotics Competition Kit of Parts. This product ships as an un-assembled kit. It features HiGrip Wheels, Toughbox Mini Gearboxes, and a Gates HTD Belts. If this chassis is being used for the FIRST Robotics Competition, please consider the robot perimeter rules and size this chassis accordingly.

2018 Assembly Instructions with Bumpers
2018 How to attach Bumpers Power Up Chassis

This chassis DOES NOT include CIM motors or Bumper Hardware.

Various Configurations:

Built on the same great features of the AM14U2 chassis, this can be configured into many different perimeter configurations, and now easier wheel and gearbox configurations!

It is shipped as a Kit with plates that would build its original square configuration, without any components reduced in length. This makes it the largest possible size and allows for the user to customize the chassis to become a long or wide version. The assembly instructions show how it can be changed, be sure to check out the assembly videos as well.

Box Size: 5.5 in. x 6.5 in. x 33 in.
Weight without CIM Motors: ~25lbs

Included Hardware:
- 2 - AM14U3 Outer Plate (am-2951a)
- 2 - AM14U3 Inside Plate (am-2952a)
- 2 - AM14U3 End Plate (am-2953a)
- 2 - TB Mini Gearbox for AM14U, 10.71:1 Ratio (am-2598_107)
- 2 - 500EX Hex Hub (am-2568)
- 2 - Churro, 24.25 in. long (am-2974)
- 4 - 2x3 Hole Bracket (am-2954)
- 8 - Churro, 3.375 in. long (am-2569)
- 6 - 6 in. HiGrip Wheels (am-0940a)
- 4 - Gates HTD, 15mm wide, 120T Belts (am-2704)
- 4 - Gates HTD 15mm Wide 131T Belts (am-2571)
- 4 - Gates HTD, 15mm wide, 160T Belts (am-2266)
- 20 - 1/4-20 x 3/4 Thread Forming Screw (am-1310)
- 4 - 3/8-16 Nylock Nut (am-1054)
- 4 - 3/8-16 x 4.25 in. Hex Head Screw (am-1297)
- 2 - Hex Plastic Spacer, 0.57 in. long (am-1305)
- 4 - Small Plastic Spacer, 0.28 in. long (am-1306)
- 4 - Long Plastic Spacer, 0.85 in. long (am-1307)
- 16 - Pulley Half, 42 Tooth (am-2234_half)
- 48 - 10-24 x 1.25 in. long Thread Forming Screw (am-1266)
- 8 - 1614ZZ Bearing (am-0209)
- 2 - FR8ZZ-HexHD Bearing (am-2986)
- 40 - 10-32 x 0.5 in. long SHCS (am-1002)
- 40 - 10-32 Nylock Nut (am-1042)
To make this drive, you will need a power and control system like the FRC roboRIO Robot Control Kit (am-3034) or the Cheap & Dirty Electronics for two motors (am-2493). The gearbox requires two CIM motors (am-0255), but we recommend four CIMs for situations like heavy robots, high traction, and pushing match situations that put a lot of load on the motors. You will also need at least one battery, like the Interstate Batteries (am-3062), and a charger like our 6 Amp charger (am-2555).
