This product has been replaced by am-3921
AM14U3 Outer Plate - am-2951a - migrated

AM14U3 Outer Plate

by AndyMark
$23.00 - $23.00
$23.00
$23.00
$23.00 - $23.00
$23.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-3921

This product is currently unavailable for purchase

SKU am-2951a
  • Description
  • Specifications
  • Documentation

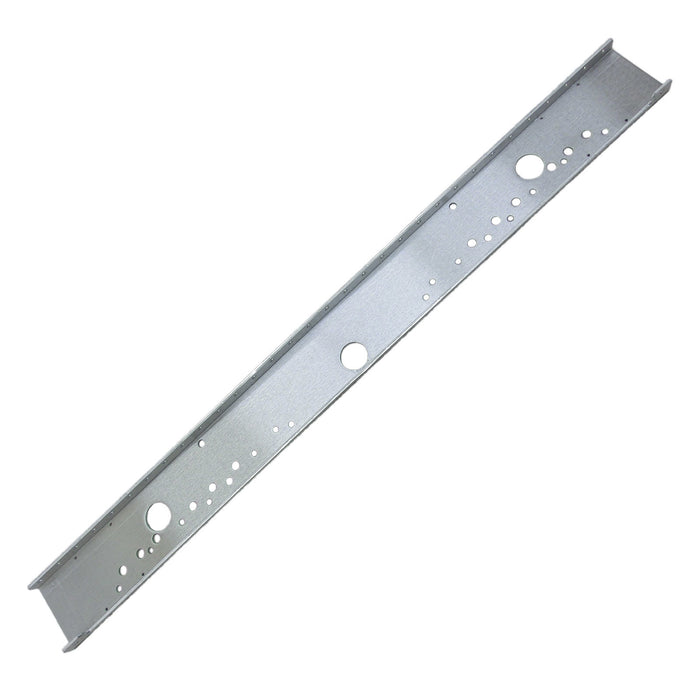

  • This sheet metal plate is makes up the outer plate of the AM14U3 drive chassis. This plate has different holes to accommodate different size wheel configurations as well as locations for support churros.
    • Flange Hole Size: 0.210 in.
    • Height: 2.8 in.
    • Length: 32.0 in.
    • Lower Flange Length: 0.323 in.
    • Material: 5052 Aluminum
    • Mounting Hole Spacing Across The Length: 1.0 in. Spacing
    • Thickness: 0.125 in.
    • Upper Flange Length: 0.760 in.
    • Weight: 1.37 lbs.

  • CAD Files

    am-2951a AM14U3 Outside Plate.STEP

    Layout Prints

    am-2951a AM14U2 Outside Sheet Rev2.PDF
