AM14U3 XL Cross Plate

by AndyMark
$41.75 - $41.75
$41.75
$41.75
$41.75 - $41.75
$41.75

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-3975

This product is currently unavailable for purchase

SKU am-3512
  • Description
  • Specifications
  • Documentation

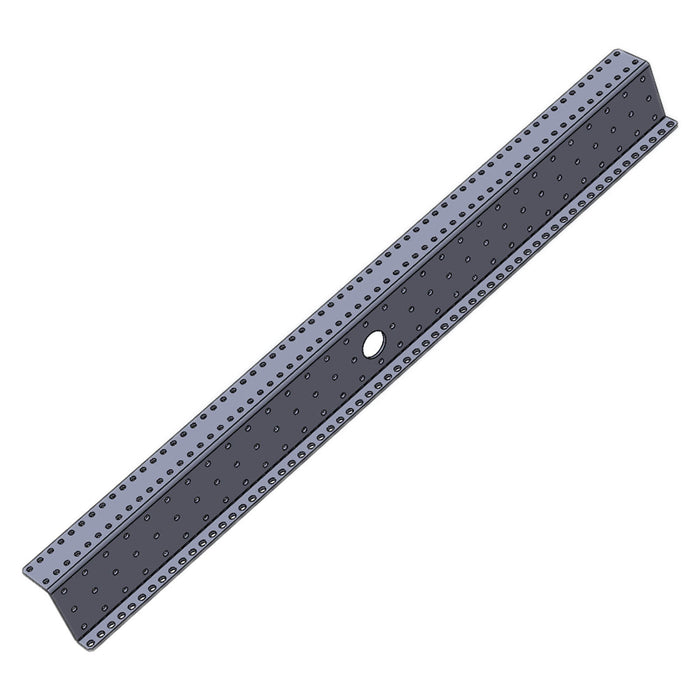

  • The cross plate is used to strengthen AM14U family frames to accommodate for an extra large opening in the front or back of the chassis frame. This cross bar can be cut down on either end and features a hole sized for a bearing in the center of the plate for use with an H-Drive or other custom additions.
    • Height: 2.935 in.
    • Hole Size: 0.210 in.
    • Length: 31.0 in.
    • Lower Flange Length: 0.75 in.
    • Lower Hole Pattern: 0.5 in. Spacing
    • Material: 5052 Aluminum
    • Overall Depth: 2.5 in.
    • Thickness: 0.125 in.
    • Upper Flange Length: 1.625 in.
    • Upper Hole Pattern: Two rows 1.0 in. apart, 0.5 in. between holes in each row
    • Weight: 1.77 lbs.

  • CAD Files

    am-3512 AM14U3 Cross Plate XL.STEP

    Layout Prints

    am-3512 AM14U3 Cross Plate XL.PDF
