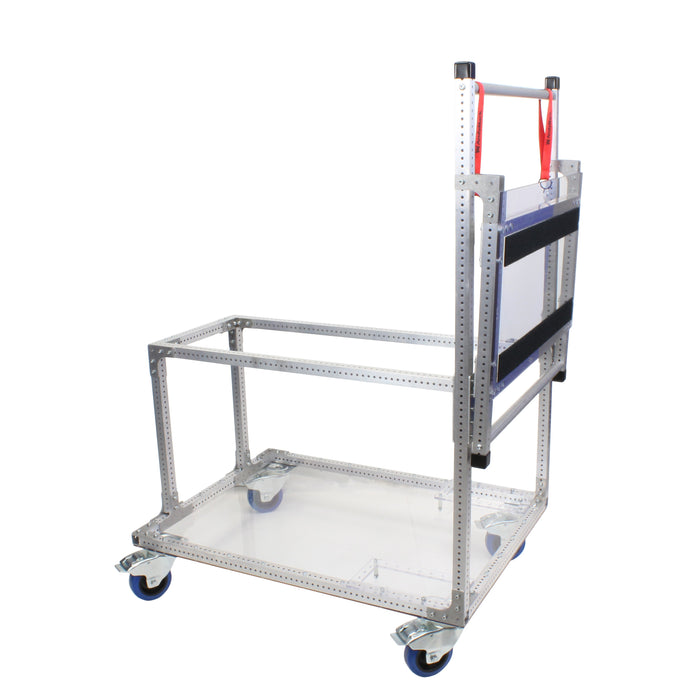

This robot cart is perfect for transporting your robot, spare batteries, and driver station to the field with plenty of room underneath for practice scoring elements (most years), spare parts, tools, or anything else you want to keep on hand.

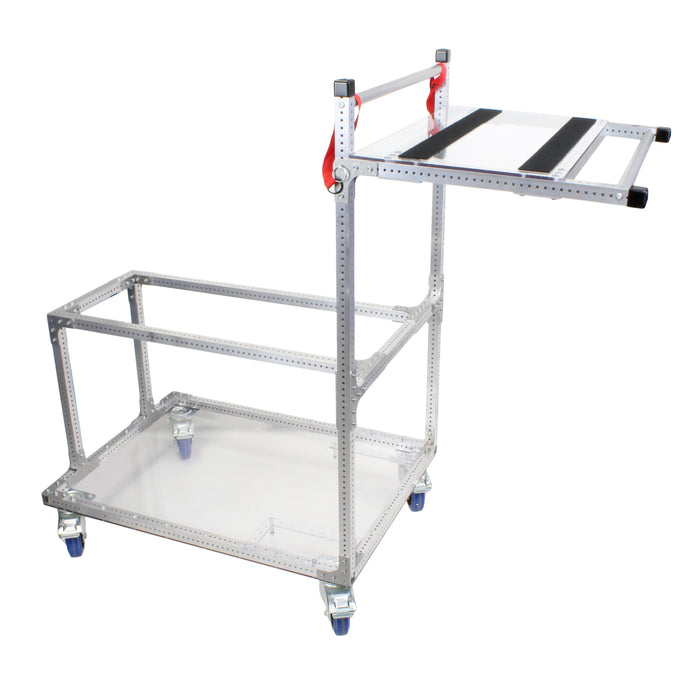

With the pull of 2 pins, the shelf for holding the driver station folds down, making the cart small enough to legally be allowed onto the field for safe and easy robot setup. The pre-drilled box tube construction allows nearly infinite customization with team-designed add-on parts such as water bottle holders, flag holders or even racks for tackle boxes underneath. The cart comes with 4 locking casters, a pre-cut polycarbonate belly pan and driver station table, as well as all the extrusion, brackets, and hardware to build the cart. You will be responsible for cutting extrusion segments to length per the instructions and assembling the cart.
-
Included items:
- 4 - 4 in. Caster Assembly with Brake (am-4989)
- 1 - Polycarbonate Robot Cart Belly Pan (am-5678_pan)
- 1 - Polycarbonate Driver Station Tray (am-5678_tray)
- 2 - Polycarbonate Battery Tray (am-5677)
- 10 - 47x1x1 Pre-Drilled Box Tube Extrusion (am-5177)
- 1 - 47 in. Long 0.875 In. OD 0.065 Thick Aluminum Tube (am-5354-47)
- 6 - -90 Degree Inside Corner ½ in. Pitch Gusset (am-5653)
- 12 - Tee 1 in. Pitch Gusset (am-4158)
- 12 - 90 Degree 1. In. Pitch Gusset (am-3860)
- 2 - 90 Degree ½ in. Pitch Gusset (am-3860a)
- 4 - 1x1 in. Square Tube Cap (am-4501)
- 4 - 1/4-20 x 2 in. Button Head Cap Screw (am-1655)
- 4 - Tube Connector Nut for 0.875 In. OD Tubing (am-1727)
- 4 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
- 2 - 1-5/16 in. Quick Release Pin (am-2579)
- 2 - AndyMark Wrist Lanyard Key Chain (am-5679)
- 4 - 2 in. Wide Loop Adhesive
- 4 - 0.260 in. ID 0.750 in. OD 1.000 in. Long Nylon Spacer (am-1449)
- 76 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
- 20 - 10-32 x 1.75 in. Socket Head Cap Screw (am-1048)
- 20 - 10-32 x 1.375 in. Socket Head Cap Screw (am-1154)
- 1 - 10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
- 130 - 10-32 Nylock Jam Nut (am-1063)
- 16 - 10-32 x 1.500 in. Flat Head Cap Screw (am-1756)
- 25 - #10 Flat Washer (am-1026)
