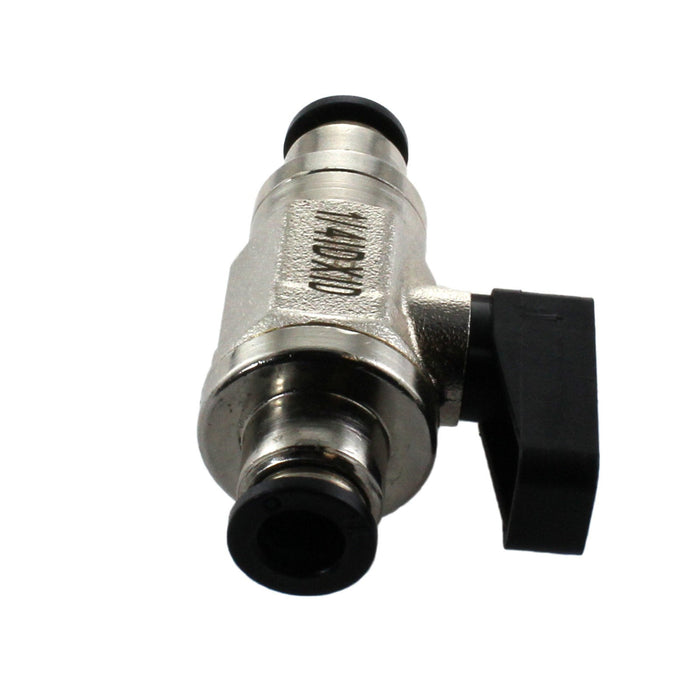

Ball Valve 1/4 in. Tube Fittings with Colored Handle

by AndyMark
$12.80 - $12.80
$12.80
$12.80
$12.80 - $12.80
$12.80
At just under 2.25 in. long, and 0.11 lbs, this mini ball valve is perfect to save space and weight.
SKU am-2023a
  • Description
  • Specifications
  • Documentation
  • At just under 2.25 in. long, and 0.11 lbs, this mini ball valve is perfect to save space and weight on your robot.

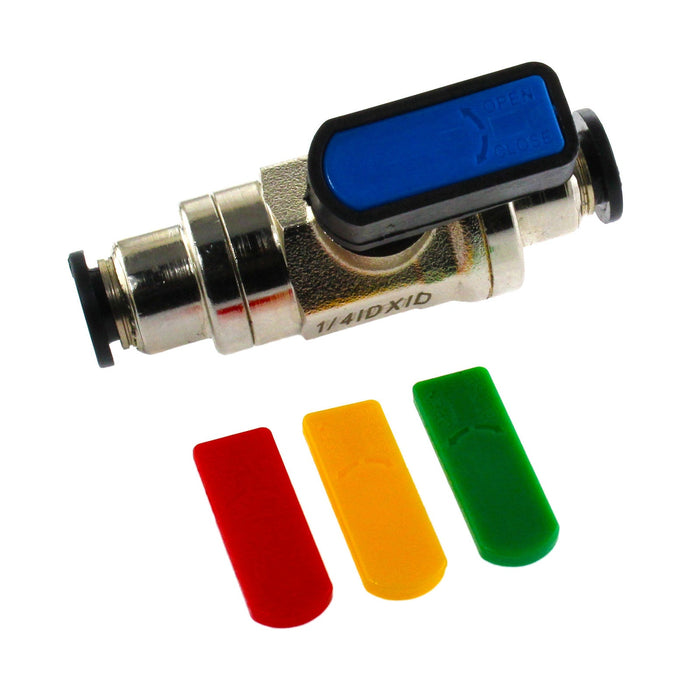

    Take it a step further and it comes with color inserts for the handle, so you can color code to your specifications or branding.

    It offers two 1/4 in. tube insert fittings, no need to add any additional fittings in line.

    On mobile robots, this can act as a vent valve or "pressure vent plug".
    For similar functionality please see am-4701
    • Handle Inserts: Blue, Green, Red and Yellow
    • Maximum Pressure: 250 psi
    • Operating Temperature: -4°F to 212°F
    • Port(s): 1/4 in. Tube
    • RoHS Compliant: Yes
    • Suitable Uses: Air, Oil, Water, Inert Gas, and Vacuum Service to 29.9 inHg
    • Weight: 0.11 lbs.

  • Datasheets

    am-2023a Specifications.pdf
