BaneBots 550 Motor - am-3830 - Pinion Option=No Pinion - migrated

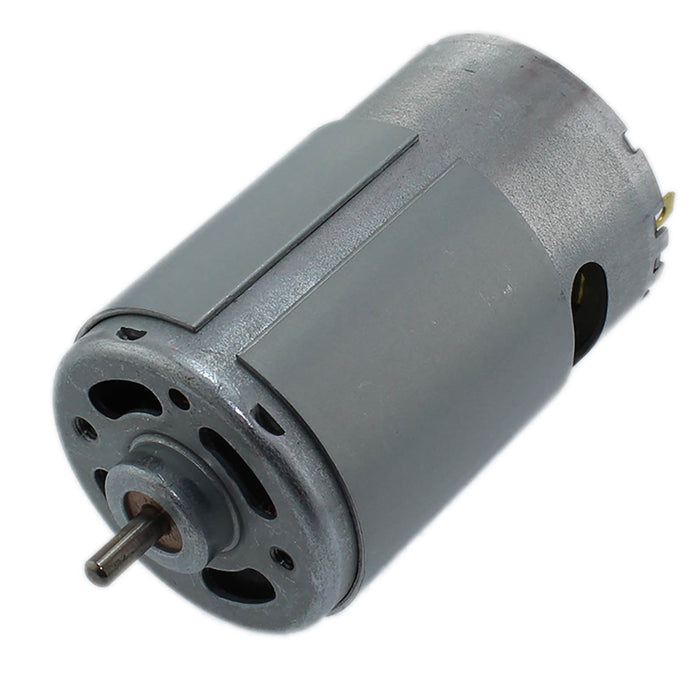

BaneBots 550 Motor

by AndyMark
Sold out
$14.00 - $19.00
$14.00
$14.00 - $19.00
$14.00 - $19.00
$14.00

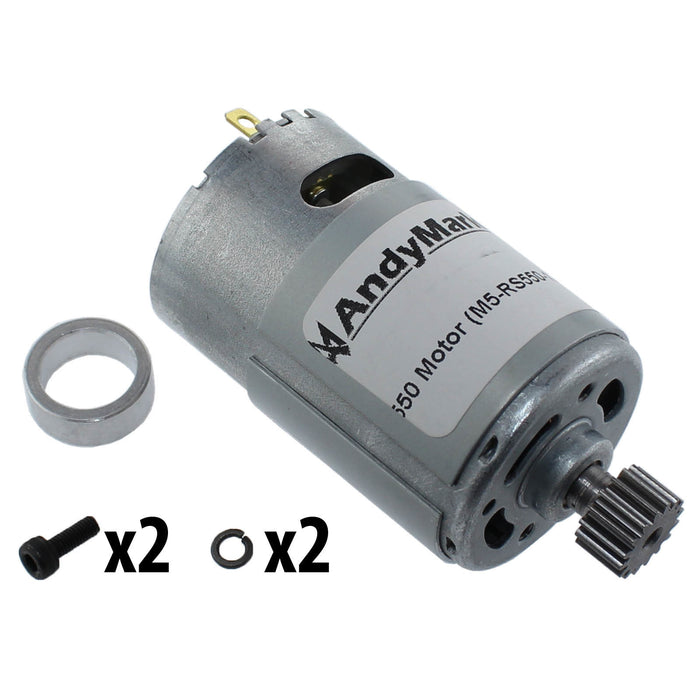

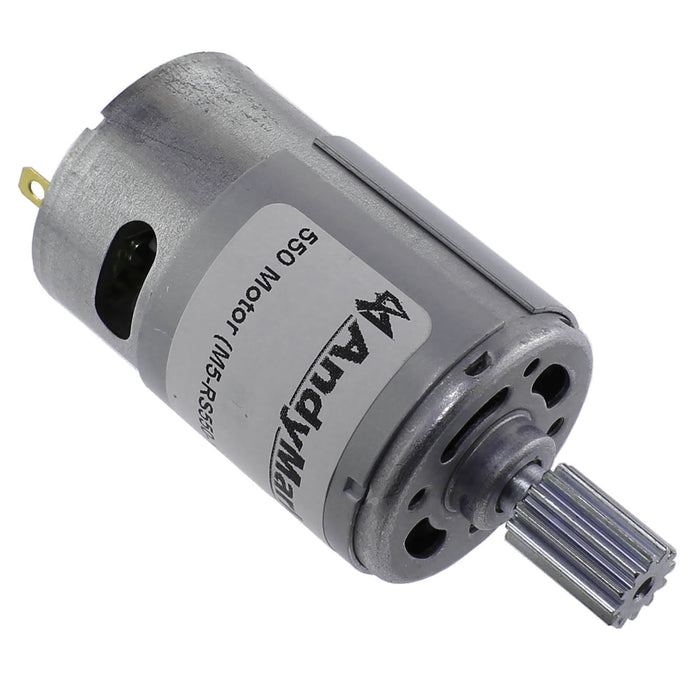

Choose a Pinion Option
SKU
  • Description
  • Specifications
  • Documentation
  • A proven 550 size motor. This motor is similar to our past 9015 motor (am-0912) but the shaft is smooth and shorter We recommend using this motor in the 57 Sport Gearbox. The mounting screws are M3 size.
    • Diameter: 1.52 in.
    • Free Current: 1.4 A
    • Free Speed: 19300 RPM
    • Hole Pattern: Qty. 2 M3
    • Length: 2.24 in.
    • Shaft Diameter: 0.125 in.
    • Shaft Length: 0.3 in.
    • Stall Current: 85 A
    • Stall Torque: 0.36 ft-lb [0.49 N-m]
    • Voltage: 6 - 14.4 VDC
    • Wattage: 200 W
    • Weight: 7.7 oz.

  • CAD Files

    am-3830 BaneBot550Motor.STEP
