Bearing and Motor Mount Bracket

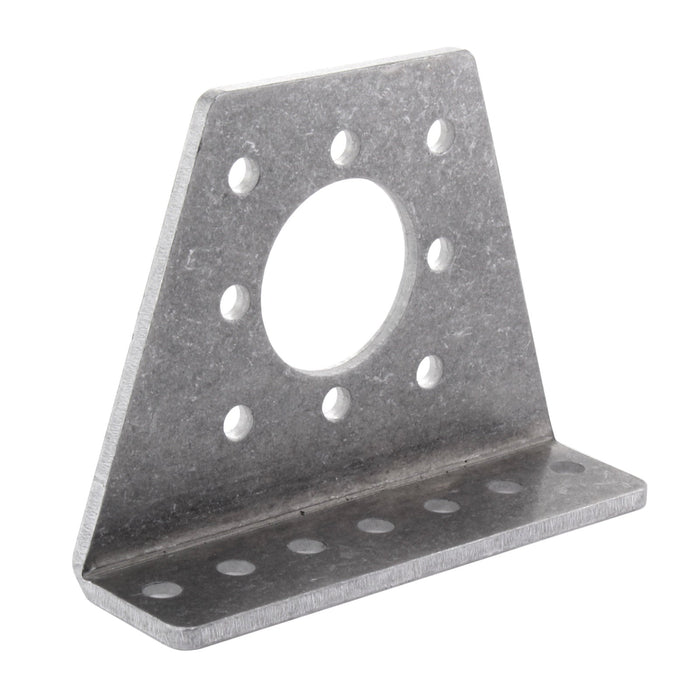

Bearing and Motor Mount Bracket - am-4244a - migrated

Bearing and Motor Mount Bracket

by AndyMark

$7.50 USD - $7.50 USD

$7.50 USD

$7.50 USD

$7.50 USD - $7.50 USD

$7.50 USD

This bracket can be used to mount motors and gearboxes, or hold a standard bearing.

Description
Specifications
Documentation

This simple bracket handles so many of your mounting needs! Mount motors or gearboxes anywhere and make axle supports with bearings - it's a do-it-all, put-it-anywhere bearing and motor mount bracket.

Any motor or gearbox with a 2-inch diameter bolt circle can be mounted in this bracket. The center hole is sized to hold a standard 1.125 inch outside diameter bearing.

Examples of motors with a 2 in. diameter bolt circle:
- 2.5 in. CIM Motor
- NEO Brushless Motor
Examples of gearboxes with a 2 in. diameter bolt circle
- PG Series Gearmotors
- Sport Gearbox
- Depth: 1 in.
- Height: 2.679 in.
- Hole Pattern: 1/2 in. Pitch
- Length: 3.5 in.
- Material: 5052 Aluminum
- Thickness: 0.13 in.
- Weight: 0.104 lbs.
CAD Files
am-4244a 0.5IN Bearing Bent Side Mount Gusset.STEP
Layout Prints
am-4244a 0.5IN Bearing Bent Side Mount Gusset.pdf

Not Returnable

This product is not eligible for returns. All sales are final.
