Bearing Nub

by AndyMark
Sold out
$6.75 - $6.75
$6.75
$6.75
$6.75 - $6.75
$6.75
SKU am-3667
  • Description
  • Specifications
  • Documentation

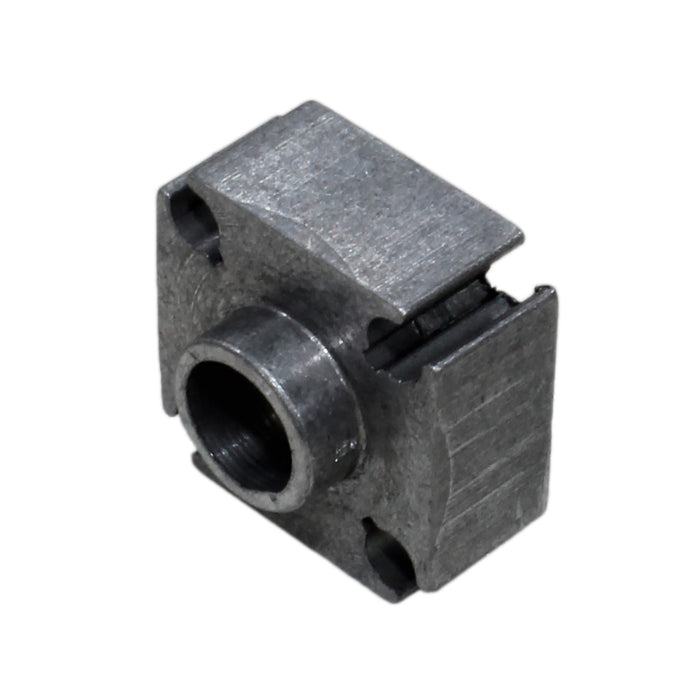

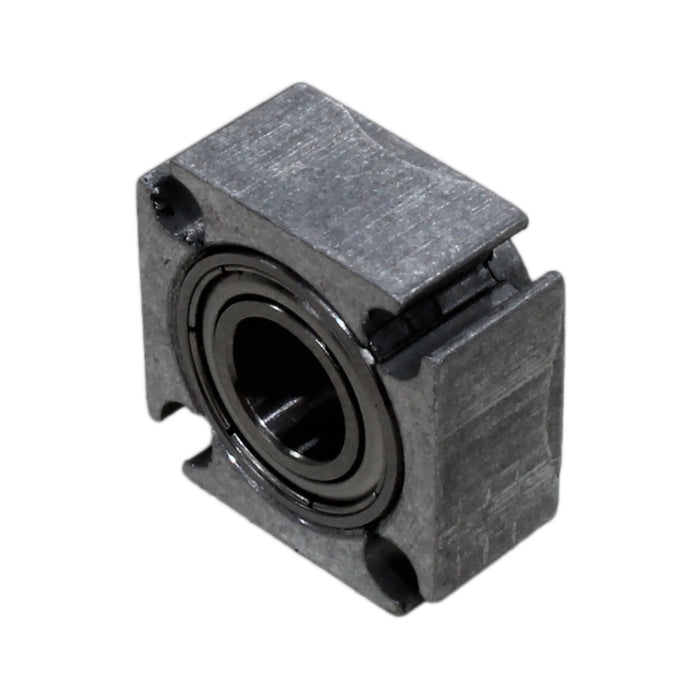

  • This nub can be used to support the end of a 6 mm D shaft, and be bolted to an S3 rail, a Ninja sprocket, pulley or wheel. With this you could create an idler sprocket, free spinning wheel or wheels on dead axles. This Nub also works as a bearing mount for a spinning axle. It uses 6 mm bearing am-3604.
    The four mounting holes on these nubs are sized at 0.128 in. diameter, with the intention of accepting a #6-32 threaded screw. They are not tapped, but can be tapped by most machine screws due to this diameter.
    • Bore: 6 mm Round
    • Depth: 0.394 in.
    • Height: 0.63 in. [16 mm]
    • Length: 16 mm
    • Material: 6061-T6 Aluminum
    • Weight: 0.01 lbs.

  • CAD Files

    am-3667 12mm Bearing Nub.STEP

    Layout Prints

    am-3667 12mm Bearing Nub.PDF
