Chain Attachment Link

by AndyMark
$2.90 USD - $3.00 USD
$2.90 USD
$2.90 USD - $3.00 USD
$2.90 USD - $3.00 USD
$2.90 USD
Connecting chain attachment links, also known as K-links, are used to secure components that need movement to a chain.
Choose Mounting Hardware
Choose Chain Size
SKU
  • Description
  • Specifications
  • Documentation

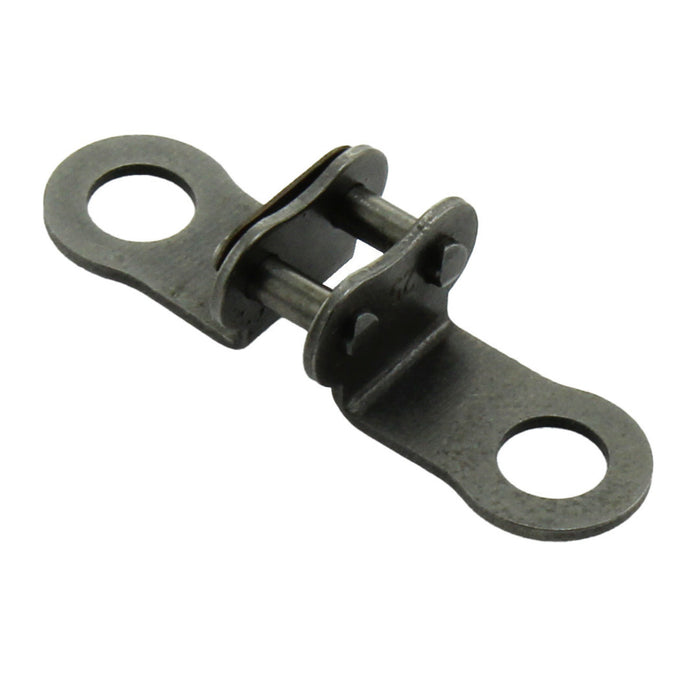

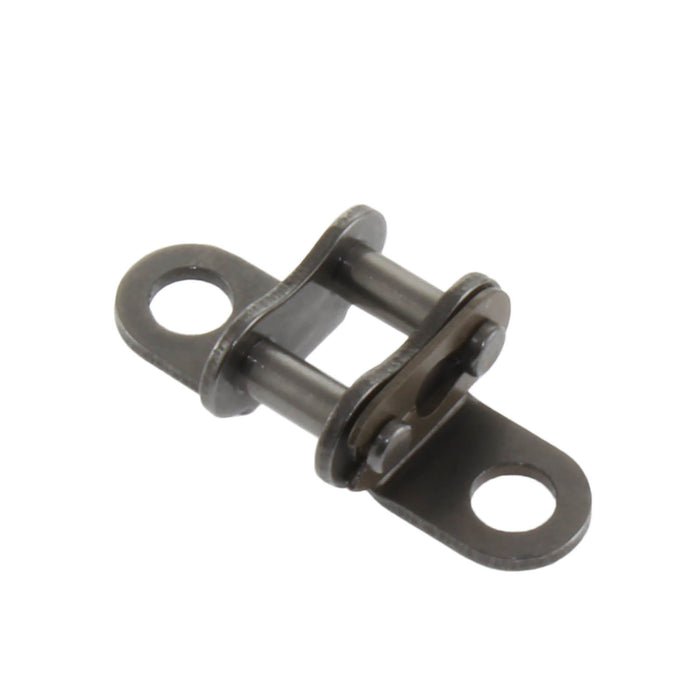

  • These connecting chain attachment links, also known as K-links, are perfect for securing components that need movement to a chain. These versions were specifically designed by AndyMark to interface with common FRC and FTC products. The #35 chain version is designed for #10 hardware on a 1 in. hole spacing. The #25 chain version is designed for #6 hardware with 16 mm (5/8 in.) hole spacing or #10 hardware on a 1 in. hole spacing. Each version makes it much easier to interface chain to elevator systems than ever before. They can also be used in conveyor systems to move items around inside your robot.

    • Chain Size: #25, #35
    • Hole Size: #6 hardware: 0.150 in., #10 hardware: 0.201 in.
    • Hole Spacing: #6 hardware: 16 mm, #10 hardware: 1.00 in.
    • Load Capacity: #25 chain: 150 lbs., #35 chain: 300 lbs.
    • Material: Steel
    • Pitch: #6 hardware: 0.250 in., #10 hardware: 0.375 in.
    • Weight: 0.01 lbs.

  • CAD Files

    am-4181a_25 #25 K Link.STEP
    am-4181_35 35 Chain Attachment Link.STEP
    am-4181_25 25 Chain Attachment Link.STEP

    Layout Prints

    am-4181a_25 25 Chain Attachment Link.pdf
    am-4181_35 35 Chain Attachment Link.PDF
    am-4181_25 25 Chain Attachment Link.PDF
