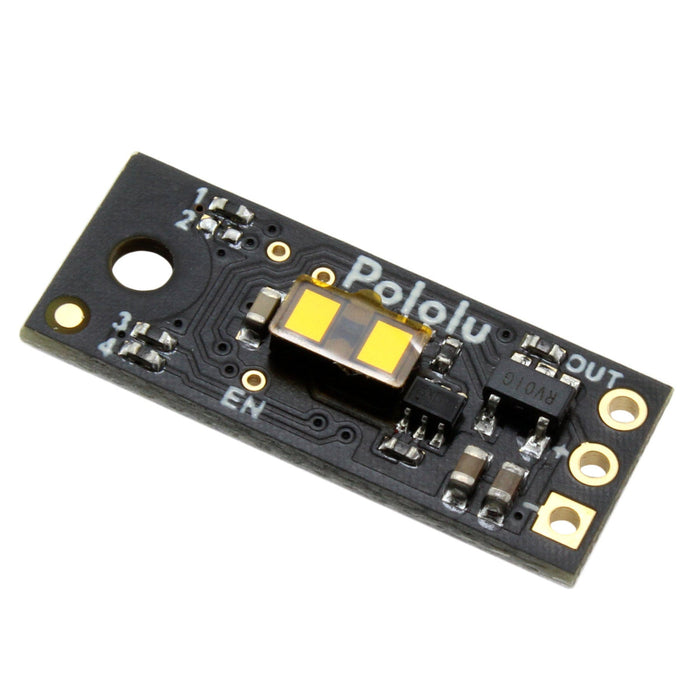

Distance Sensor with Pulse Width Output

Original price $23.00 - Original price $23.00
Original price $23.00
$23.00
$23.00 - $23.00
Current price $23.00
This sensor takes continuous distance measurements as long as it is enabled.
SKU am-4727
  • Description
  • Specifications
  • This sensor takes continuous distance measurements as long as it is enabled, up to 120 in. (300 cm) away. It uses a simple digital pulse width interface (similar to a hobby servo control signal) which can then be timed by a microcontroller using a single digital microcontroller pin. Eye-safe laser light is emitted from a short-range lidar module to hit the nearest object and then be reflected back. The sensor measure the time it takes to receive the reflected light to gauge distance with a resolution of 2 mm.

    This sensor has three connections that are necessary for use: VIN, GND, and Out. The connections work with standard 0.1 in. Headers.

    • Connect the VIN to a 3V - 5.5V source
    • Connect GN to 0 volts
    • The sensor outputs digital pulses from the OUT pin.
    The board has an optional ENABLE pin that can be driven low to put it into a low-power state that consumes approximately 0.4 mA. This pin can be accessed through a via or its neighboring surface-mount pad on the back side labeled “EN”.

    Note: The maximum range of 300 cm is only achievable for high-reflectance objects in good ambient conditions. Lower-reflectivity targets or poor ambient conditions will reduce the maximum range.

    Sample code can be found here.

    • Field of View: 15°
    • Mounting Hole: One #2 or M2 Screw
    • Operating Voltage: 3.0 V - 5.5 V
    • Output Type: Digital Pulse Width
    • Range: 4 cm - 300 cm
    • Sampling Rate: 30 Hz
    • Size: 0.85 in. x 0.35 in. x 0.136 in.
    • Supply Current: 30 mA
    • Weight: 0.004 lbs.
