These double acting single rod stainless steel cylinders are a solid choice when you want air actuated motion.

Quantity

SKU

Description
Specifications
Documentation

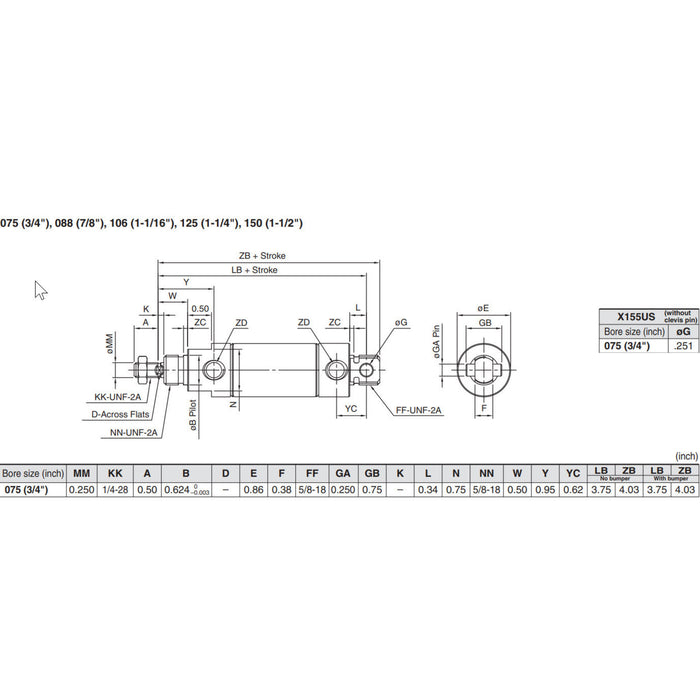

These cylinders have a strong 0.75 in. thick bore and are available in multiple stroke lengths.
- Bore: 0.75 in. (3/4) Round
- Manufacturer: SMC
- Manufacturer Part #: NCME075-[stroke length]
- Nose Thread: 5/8-18
- Pivot Point: Rear
- Port(s): 1/8 in. NPT
- Retracted Overall Length: 5.1 in., 6.5 in., 8.5 in., 10.5 in., 11.5 in.
- Rod Thread: 1/4-28 Thread

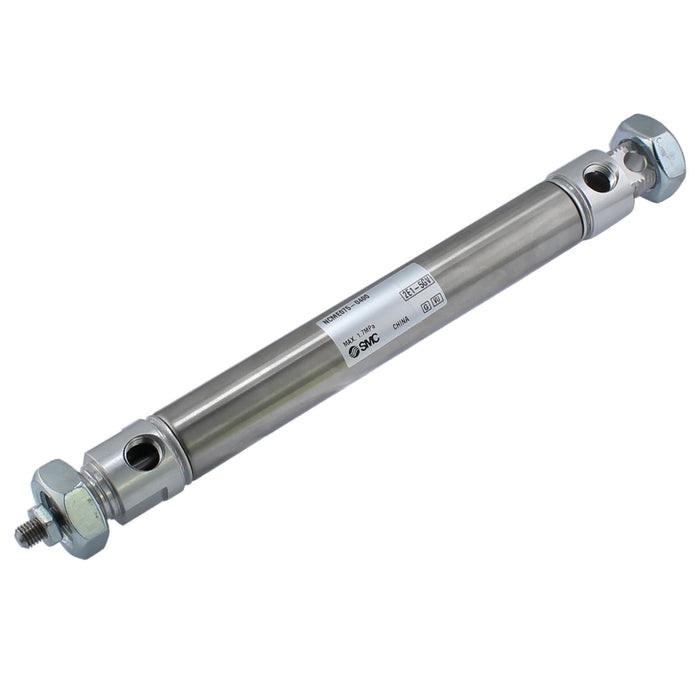

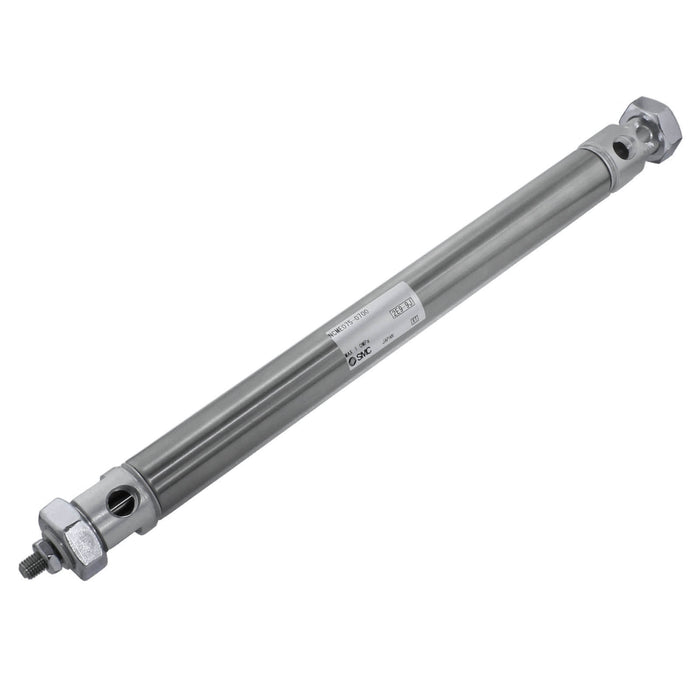

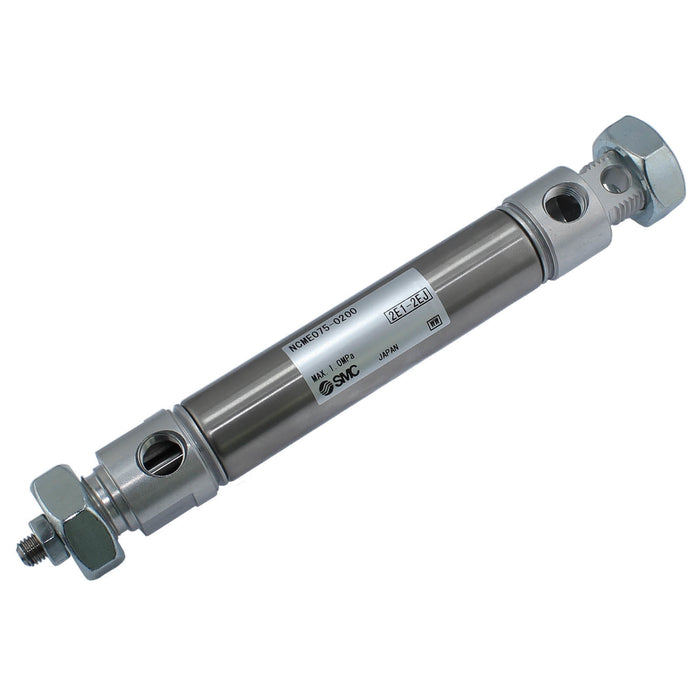

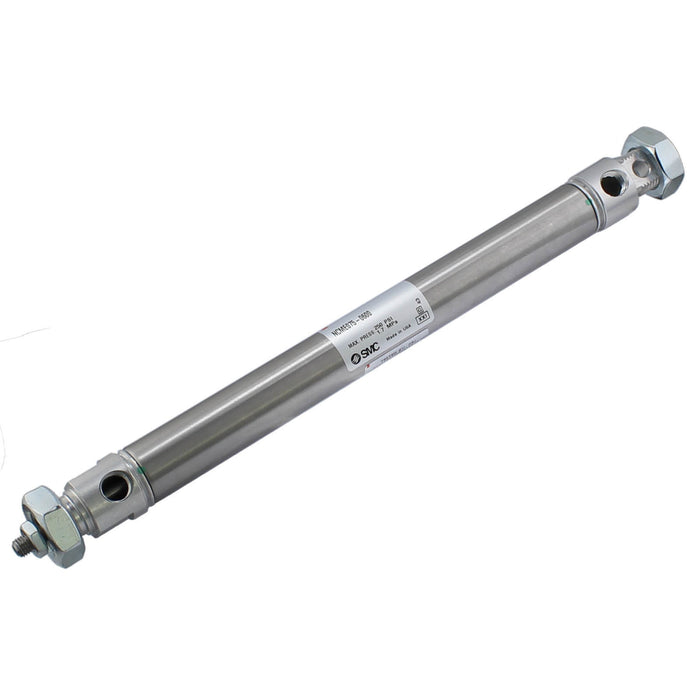

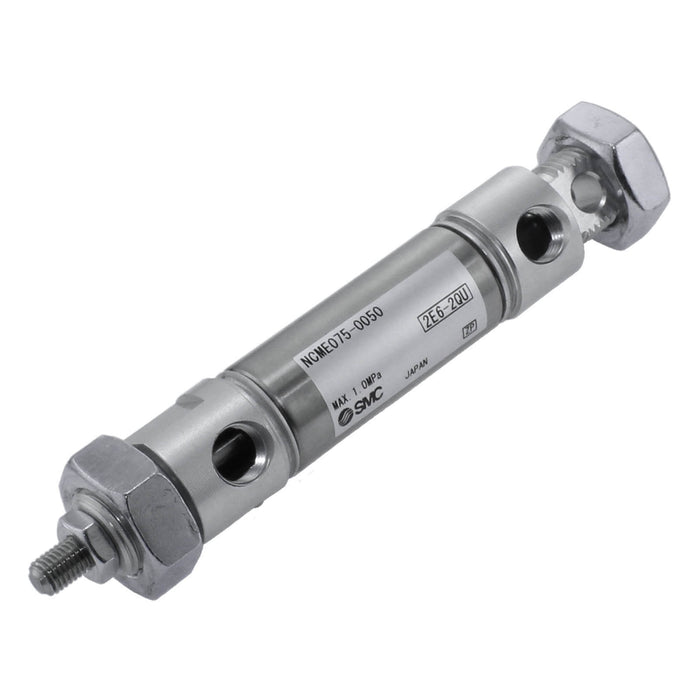

- Stroke: 0.5 in., 2 in., 4 in., 6 in., 7 in.
CAD Files
am-2034_7 075IN Bore SMC Air Cylinder.STEP
am-2034_05 075IN Bore SMC Air Cylinder.STEP
am-2034_6.STEP
am-2034_4.STEP
am-2034_2.STEP
