Everypit Battery Holder Assembly

Everypit Battery Holder Assembly

by AndyMark
$129.00 USD - $129.00 USD
$129.00 USD
$129.00 USD
$129.00 USD - $129.00 USD
$129.00 USD

The Everypit is a design by FRC Team 118. This is an assembly that appears in the Everypit to make storing batteries easy!
SKU am-5676
Usually Ships in 2 to 3 Business Days
  • Description
  • What's in the Box?
  • Documentation

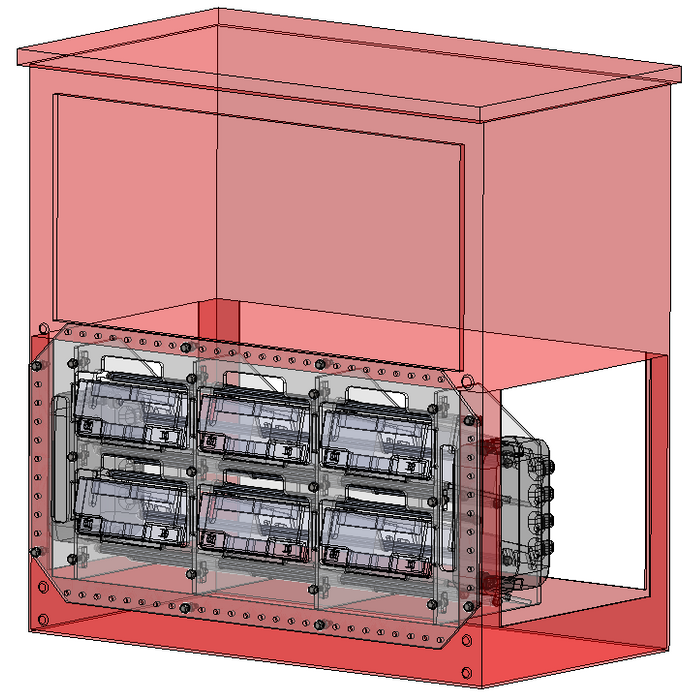

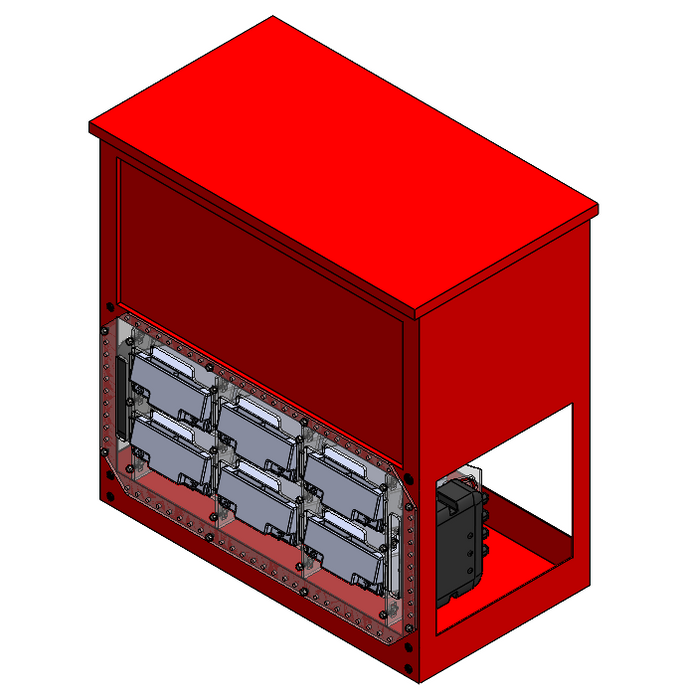

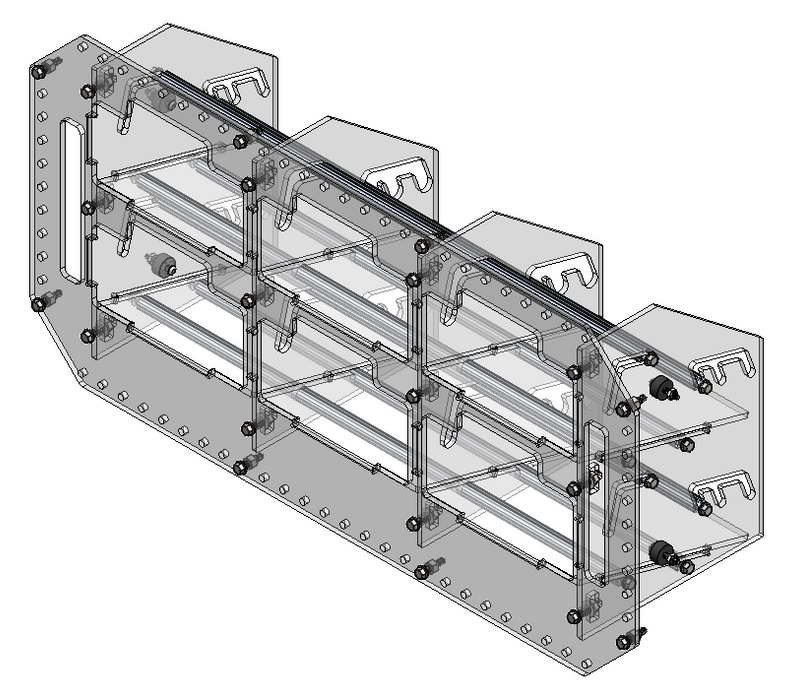

  • The Everypit Battery Holder Assembly is a battery storage device designed in conjunction with FRC Team 118 with the aim to be an easy to use method for transporting and housing batteries in your shop or at competitions. This storage device is designed to be compatible with commonly available tool chest carts including this US General one from Harbor Freight. The cart features mounting for up to two of our 3 bank NOCO battery chargers and slots for up to six FRC batteries. The system also has 3 end stop positions for the batteries based on team preference and a travel bar that helps hold the batteries in place when transporting the cart to and from events.

    Note: Tool chest cart, battery chargers, and batteries are not included.

    Be careful when moving the cart when fully loaded to avoid accidental tipping.

  • Included items:

    • 2 - Everypit Polycarbonate Base Plate (am-5676_baseplate)
    • 2 - Everypit Polycarbonate Divider Plate (am-5676_divider)
    • 2 - Everypit Polycarbonate End Plate (am-5676_endplate)
    • 1 - Everypit Polycarbonate Face Plate (am-5676_faceplate)
    • 8 - Churro 500 Cross Hex Tube, 2 ft (am-3101-2)
    • 36 - 1/4-20 x 1 in. Thread Forming Screw Hex Washer Head (am-1182)
    • 8 - 0.257 in. ID 0.313 in. OD 0.250 in. Long Aluminum Spacer (am-3424)
    • 20 - 1/4-20 Nylock Nut (am-1015)
    • 12 - 1/4 in. Flat Washer (am-1027)
    • 4 - 5 mm Hex Bore 0.375 in. Long Hex Spacer (am-4535-375)
    • 4 - 10-32 x 1.25 in. Button Head Cap Screw (am-1260)
    • 4 - 10-32 Nylock Jam Nut (am-1063)

  • CAD Files

    am-5676 EveryPit Battery Holder.STEP

    Layout Prints

    am-5676 EveryPit Battery Holder.pdf

    Guides

    am-5676 EveryPit Battery Holder Assembly Guide.pdf
