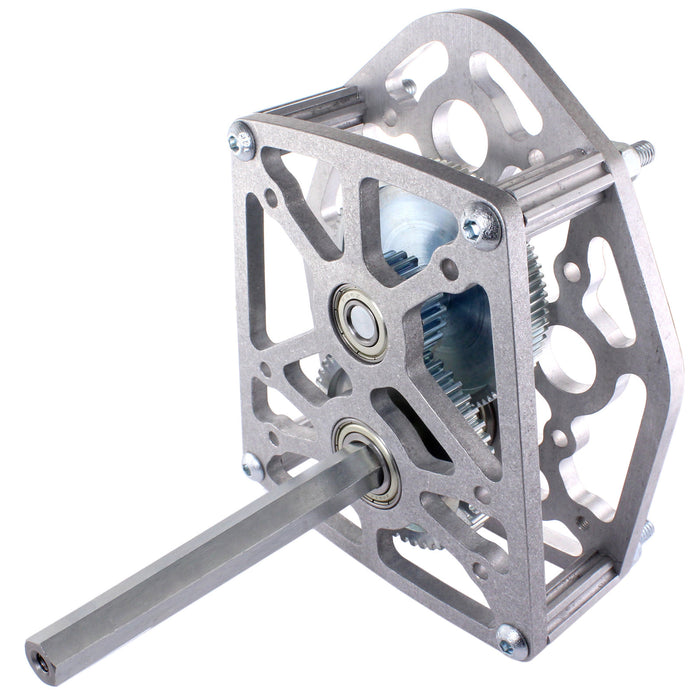

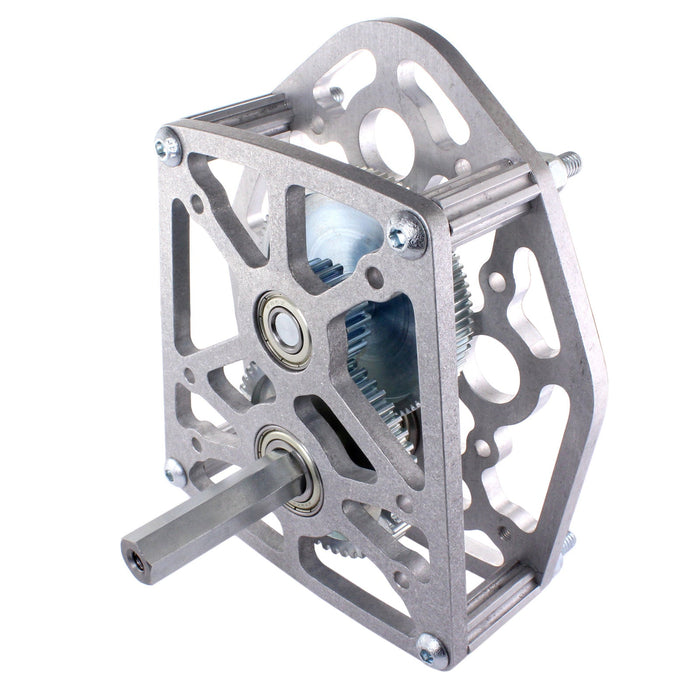

EVO Slim

• When using a NEO motor a 3 ton arbor press is required to install this pinion due to the intended interference fit (0.001 - 0.002 in.) Please follow the NEO Press Fit Pinion Guide. This press fit procedure has been tested to have a factor of safety of 3.5 on a NEO.
• When using a CIM motor the pinion may be a slip fit or a press fit (as above) due to the manufacturing tolerances of these motors. In either case apply a few rings of red Loctite to the shaft and inside the pinion, then press the pinion on using the provided aluminum spacer (am-3552) to set the depth from the end of the motor shaft (approximately 0.40 in.). Red Loctite has been tested to a factor of safety of 4 on a CIM when let to cure for 24 hours.

Encoder Options:

The EVO Slim for CIM accepts either the E4T Optical Encoder Kit or the SRX Mag Encoder. This requires the use of a 3D printed mount plate. When current inventory is exhausted, the appropriate holes will be added to the motor plates to accommodate our Encoder Mount Pad. When using the SRX Mag Encoder with either option the SRX Magnetic Encoder Mounting Hardware Kit is also required.
