This product is available at CTR Electronics

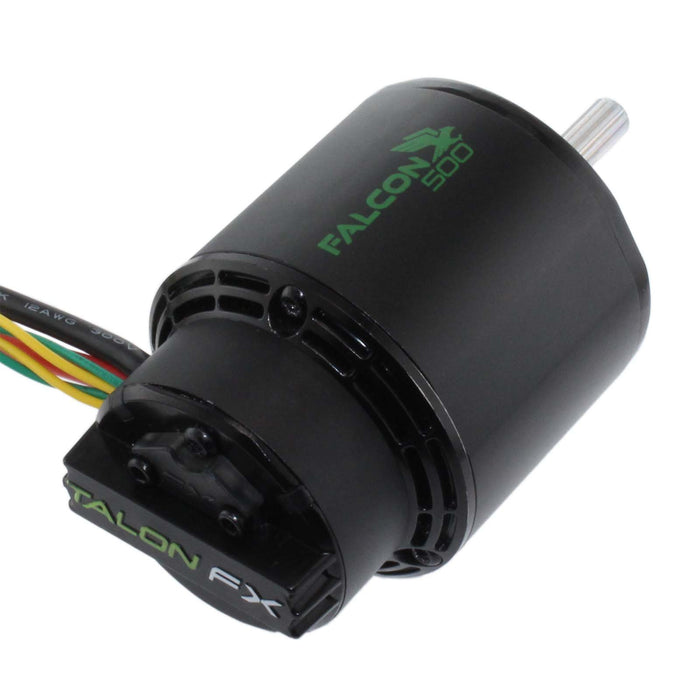

Falcon 500 Motor - am-Falcon500_1 - Image-1 - migrated

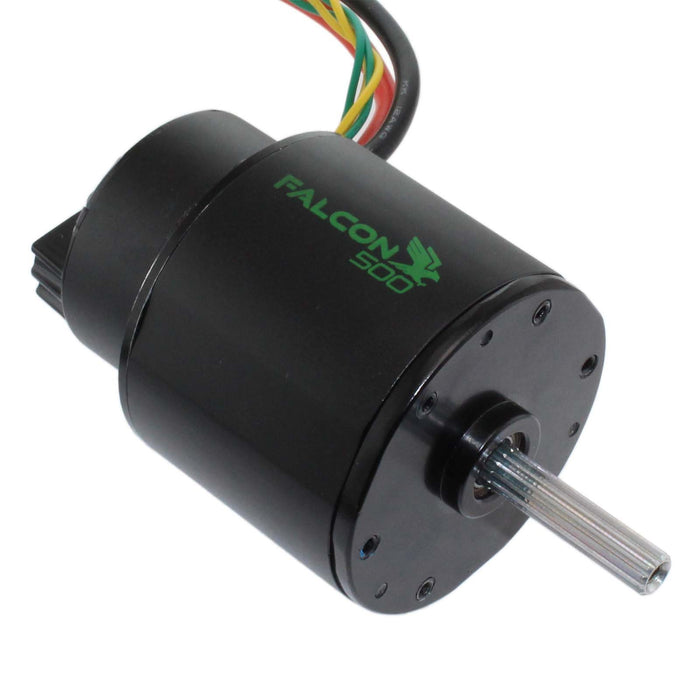

Falcon 500 Motor

by AndyMark
$190.00 - $190.00
$190.00
$190.00
$190.00 - $190.00
$190.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and is available at CTR Electronics

This product is currently unavailable for purchase

SKU am-6515
  • Description
  • Specifications
  • Documentation
  • Warranty

  • The Falcon 500, powered by Talon FX, is a Brushless Motor and controller co-developed through a collaborative partnership between VEX Robotics and Cross the Road Electronics. This is the same partnership that brought the cutting edge Talon SRX and Victor SPX to the FIRST® Robotics Competition.

    It is designed to give FRC teams previously unheard of amounts of power and efficiency, the Falcon 500 reduces size, weight, and common failure points of other motors in the market.

    AndyMark will be selling two versions of this motor, one pre-configured with the original long shaft, and the short shaft saving you time and money when using this motor in a Falcon Sport or other gearbox that requires a shorter shaft. To assemble your own short shaft version, purchase am-6958. Please allow a 3-5 day delay when ordering the short shaft version of the motor.

    Included Hardware:

    • One - Falcon 500 Motor (with either long or short shaft)
    • Six -1/16 in. Long Falcon Shaft Spacers
    • Four -1/8 in. Long Falcon Shaft Spacers
    • Two -1/4 in. Long Falcon Shaft Spacers
    • One - 3-Wire Retaining Clip
    • Maximum Power: 780 W
    • Mounting Holes: 6x #10-32 on a 2 in. Circle
    • No Load Current: 1.5 A
    • No Load Speed: 6380 RPM
    • Overall Length: 4.569 in.
    • Stall Current: 257 A
    • Stall Torque: 3.46 ft-lb [4.69 N-m]
    • Voltage: 12 VDC
    • Weight: 1.1 lbs.

  • Layout Prints

    am-6515 Falcon 500 Brushless Motor with Long Shaft.PDF

    CAD Files

    am-6515 Falcon 500 Brushless Motor with Long Shaft.STEP

    Guides

    am-6515 Falcon 500 Brushless Motor User Guide

  • Warranty Information

    Please contact Cross the Road Electronics support@ctr-electronics.com for warranty issues, Return Merchandise Authorization (RMA), or assistance for this product.
