Falcon 500 Spline to 1/2 in. Hex Shaft Adapter - am-4187 - Size=1in. Long - migrated

Falcon 500 Spline to 1/2 in. Hex Shaft Adapter

by AndyMark
$11.70 - $11.70
$11.70
$11.70
$11.70 - $11.70
$11.70
These adapters are intended to be a high strength solution to adapt the Falcon Spline to any product that has a 1/2 in hex bore.
Choose a Size
SKU
  • Description
  • Specifications
  • Documentation

  • This product includes the correct size washers to retain items along the hex shaft, as well as a thread-patch 8-32 screw to be used in conjunction with spacers included with the Falcon 500 motor to retain motion hardware.

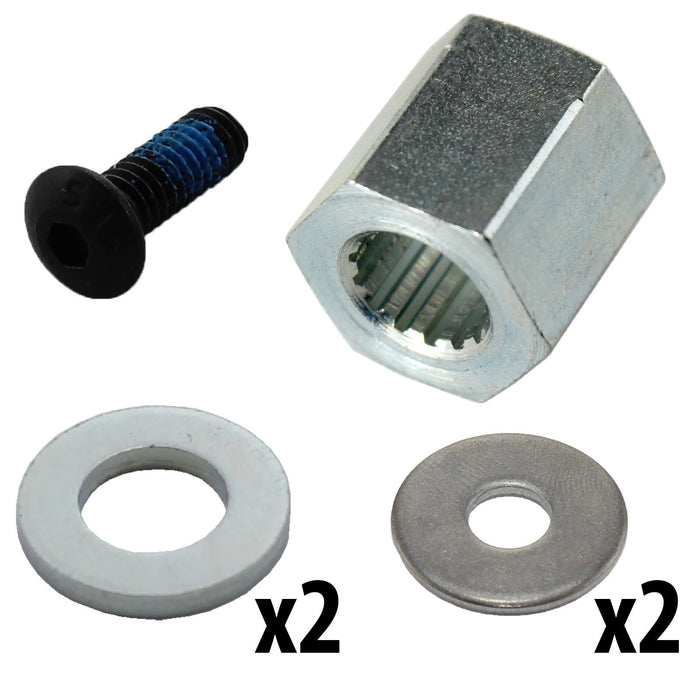

    Included Items:

    Individual Items in Each Kit

    • 1 - Spline to Hex Adapter
    • 2 - 1/16 in. Steel Washer (am-1538)
    • 2 - M7 Flat Washer (am-1543)
    • 1 - 8-32 x 500 BHCS with Nylon Patch (am-1691)
    ----------------------------------------------------------------------------------------------------
    • Bore: Falcon Spline
    • Hex Size: 1/2 in.
    • Length: 1/2 in., 1 in.
    • Material: Steel

  • CAD Files

    am-4187 Spline to 500 Hex.STEP

    Layout Prints

    am-4187 Falcon 500 Spline to 500 Hex Adapter WEBPRINT.PDF

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
PD from TOWN AND COUNTRY
Great Option to Adapt to Hex Shaft for Falcon Motors

We used the Hex Shaft adapter on almost every Falcon motor we used this year. Overall they worked great. A few were a little harder to push on but worked great. Highly recommend.
