This product has been replaced by am-2975a
Futaba Servo, model S148 - am-2975 - migrated

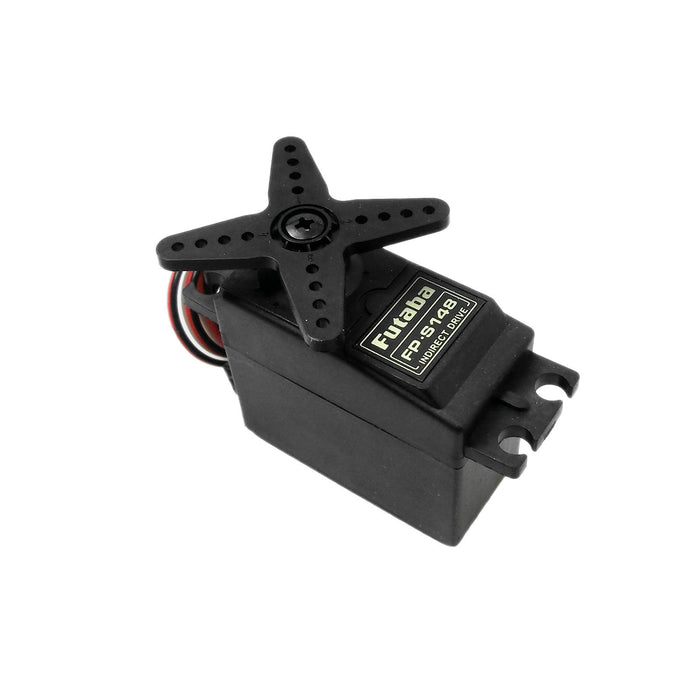

Futaba Servo, model S148

by AndyMark
$20.00 - $20.00
$20.00
$20.00
$20.00 - $20.00
$20.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-2975a

This product is currently unavailable for purchase

SKU am-2975
  • Description
  • Specifications
  • Manufactured by Futaba, the S148 Standard Servo yields increased power and speed with a reduced size and weight compared to the S128, yet uses the same gears and servo cases. This servo is a replacement for the following servos.(S6,S17,S18,S23,S26,S28 S38,S128)
    • Maximum Rotation: 180° (Able to be modified to be Continuous Rotation)
    • Operating Speed: 0.28 sec / 60° at no load, 0.22 sec / 60° at no load
    • Operating Voltage: 4.8 - 6.0 V
    • Required Pulse: 3-5 Volt Peak to Peak Square Wave
    • Size: 1.6 in. x 0.8 in. x 1.4 in.
    • Spline Profile: 25T (3F Standard)
    • Stall Torque: 0.229 ft-lb [0.31 N-m], 0.297 ft-lb [0.403 N-m]
    • Weight: 1.6 oz.
