This product has been replaced by am-3313b
Hall Effect Sensor - am-3313_1 - Image-1 - migrated

Hall Effect Sensor v1

by AndyMark
$10.00 USD - $14.00 USD
$10.00 USD
$10.00 USD - $14.00 USD
$10.00 USD - $14.00 USD
$10.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-3313b
Choose Accessories

This product is currently unavailable for purchase

SKU
  • Description
  • Specifications
  • Documentation

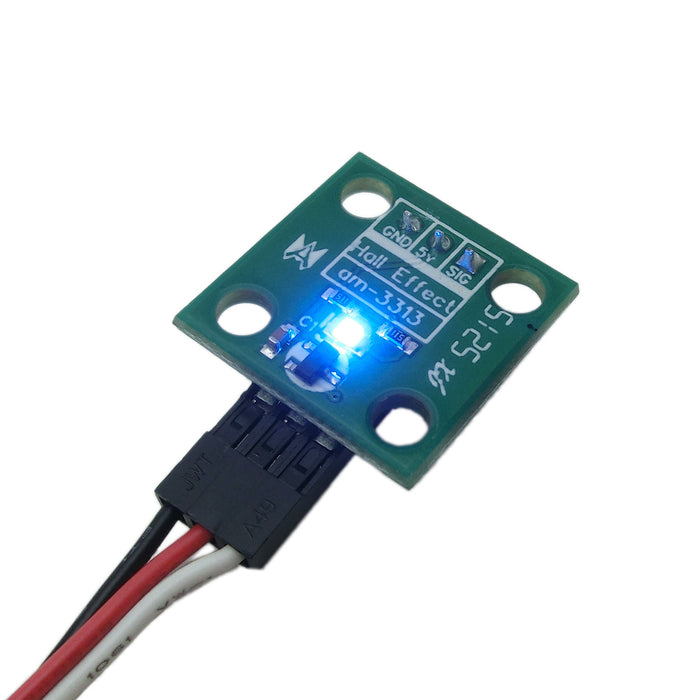

  • A better way to Hall Effect is here. Now you can easily see when the magnet is close to this hall effect sensor as there is a blue LED, on to know it's powered, that will turn off when the magnet is near.
    This Hall Effect is designed specifically for FRC use and is featured in the DART, Sensor Kit (am-3077) for the DART, 12 in. Actuator Kit (am-3072a) and DART, 6 in. Actuator Kit (am-3076a) being used as a limit switch during the actuators travel.

    The sensor works with either pole of the magnet and reading the sensor is easy, 5v means component is safe to move 0v means the magnet is under it.

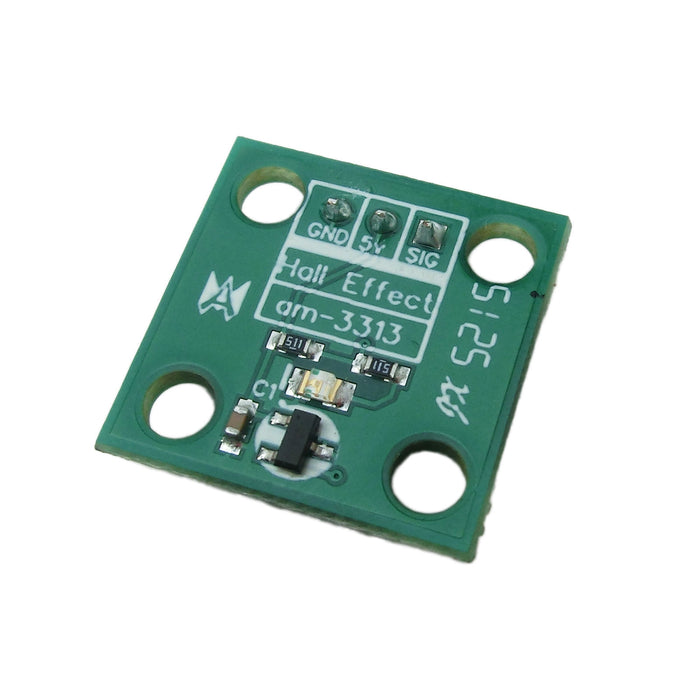

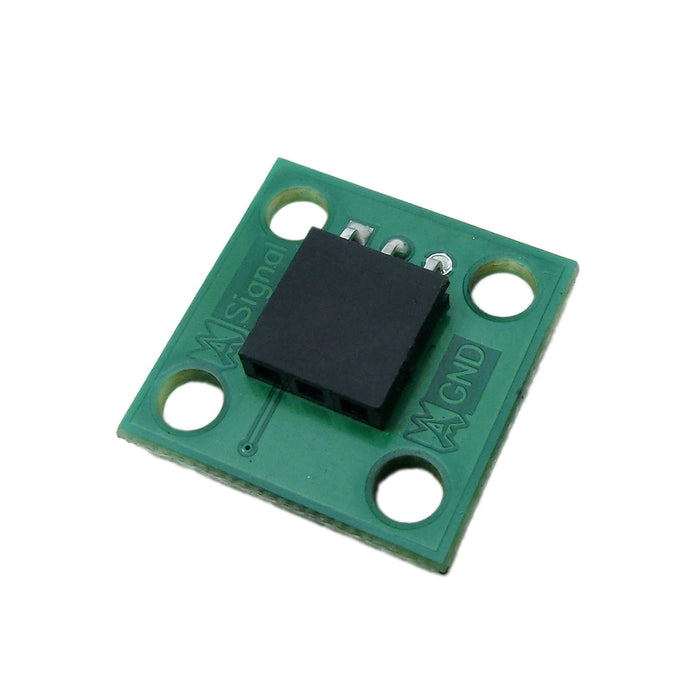

    This hall effect sensor board has four mounting holes. You can use two for mounting and two for a cable tie to hold the connecting cable in place.

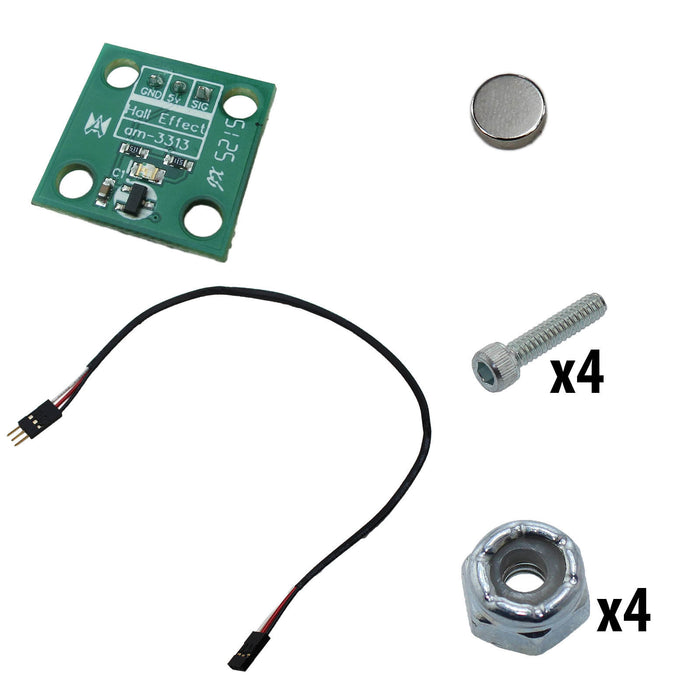

    Accessory Option Also Includes:
    Features:
    • High Sensitivity
    • Small Footprint
    • Blue LED Indicator of Activity
    • Designed for FRC use
    Dimensions:
    • Length: 0.75 in.
    • Width: 0.75 in.
    • .119" holes 0.125 in. away from edges
    • .0625" Thickness
    • Length: 0.75 in.
    • Thickness: 0.0625 in.
    • Width: 0.75 in.

  • Guides

    am-3313.pdf

    Example Code

    am-3313 Hall Effect Sensor Example Java.zip

    Datasheets

    am-3313 Hall_Effect_Datasheet.pdf
