Manifold Fitting Packs

Manifold Fitting Packs - am-manifoldpacks_1 - Image-1 - migrated

Manifold Fitting Packs

by AndyMark

$13.00 USD - $19.00 USD

$13.00 USD

$13.00 USD - $19.00 USD

$13.00 USD - $19.00 USD

$13.00 USD

Quantity

SKU

Description
What's in the Box?
Specifications
Documentation

This is a kit of all the fittings you need to use either 3 or 4 CKD valves next to each other on the Four Slot CKD Pneumatic Manifold (am-3982).

If you decided to ever remove any of the valves one CKD Manifold Blank Cover (am-4003) would be needed for each unused port.

Note for 3 valve option: Be sure to purchase one CKD Manifold Blank Cover (am-4003) to cover the unused port

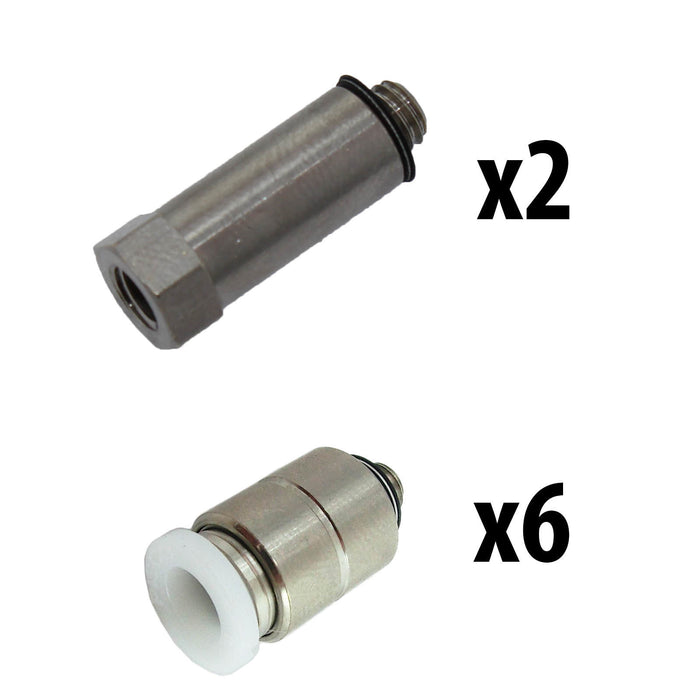

3 valves (am-3982_f3):
- 6 - M5 Pisco Fitting for 1/4 in. press-in tube (am-2384)
- 2 - M5 Pneumatic Fitting Extension (am-4004)

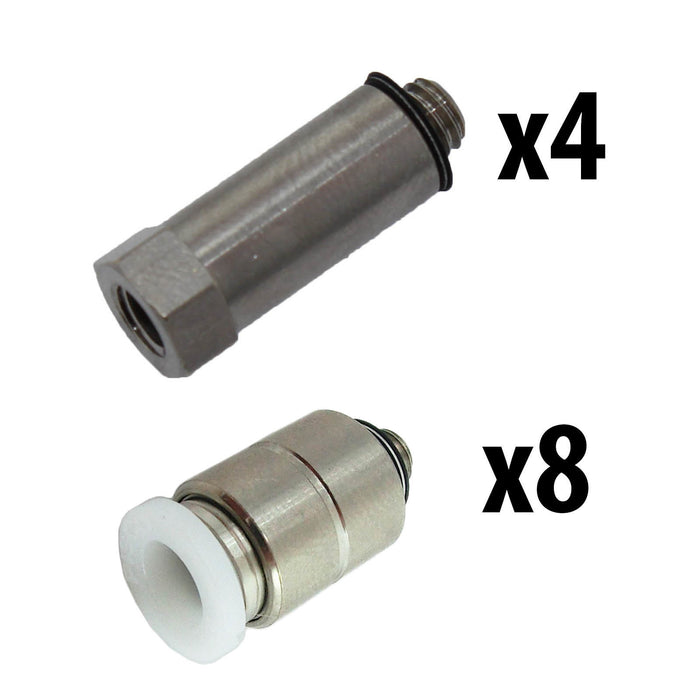

4 valves (am-3982_f4):
- 8 - M5 Pisco Fitting for 1/4 in. press-in tube (am-2384)
- 4 - M5 Pneumatic Fitting Extension (am-4004)
- Port(s): (2) Male M5, (1) Female M5, (1) 1/4 Tube Press-In
