This product has been replaced by am-4100m_PN8

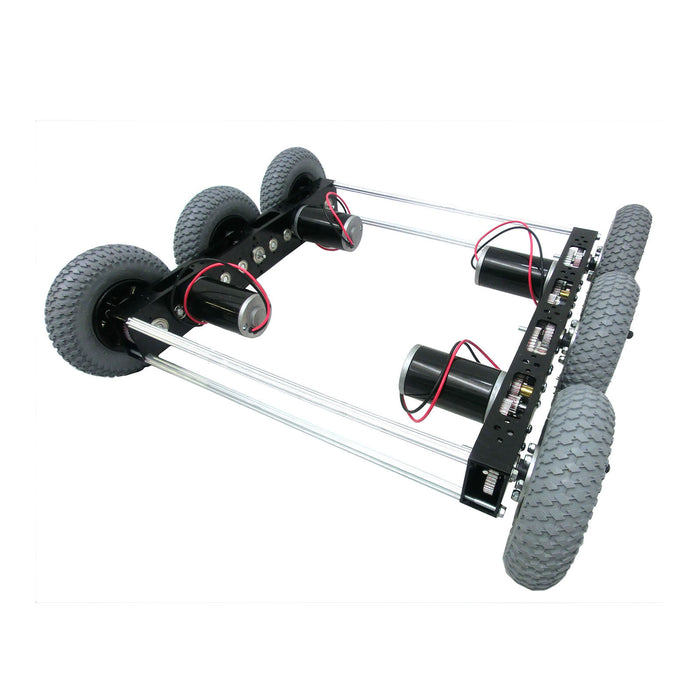

Nano Tube 20 in. Drive Chassis, 3 Shaft, 6 Pneumatic Wheels

Name: Nano Tube 20 in. Drive Chassis, 3 Shaft, 6 Pneumatic Wheels
Brand: AndyMark
SKU: am-2558
Price: 1199.0 USD
Availability: OutOfStock

by AndyMark

$1,199.00 - $1,199.00

$1,199.00

$1,199.00 - $1,199.00

$1,199.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-4100m_PN8

Description
Specifications
Documentation

This drive base is tough and ready for the road. We've driven this drive base on hilly ground, broken up asphalt, and driven it off a curb. This drive base holds up and is ready for more. Since there is not a large gap in the wheel base, this system maintains a comfortable clearance on the underside of the system. The polycarbonate sheet on the bottom can be home to your controls system as well as protects the gearboxes from debris. This drive system uses the am-2557 Nano Tubes. These are continuously geared meaning all three shafts are driven by both motor inputs. The drive system utilizes six 8 in. pneumatic wheels. The gearboxes are using the standard toughbox ratio, 12.75:1 providing a drive between 11 and 12 feet per second.

NOTE: This is sold as an unassembled kit.

Included Items:
- Two - 20 in. Ambidextrous Continuous Gear Drive 3 Shaft Nano Tube
- Four - 19.25 in. Churro
- Eight - Self Threading 1/4-20 x 2.5 in. Screws (am-1222)
- Four - CIM Motor
- Six - Pneumatic Wheel to Hub Mount Hardware
- Six - 1/2 in. Key Hub
- Six - 8 in. Pneumatic Wheel Assembly
- Six - 1/8 x 1/8 x 0.7 Machine Key
- Twelve - 3/16 Thick Nylon Spacer
- Six - Nylon Spacer
- Six - individual 1/4-20 x 1/2 in. Button Head Screw
- Six - 1/4 in. Washer (am-1027)
- One - Perforated Polycarbonate Sheet
- Eight - Nylon Loop Clamp
- Eight - 8-32 x 1/2 in. Socket Head Screw
- Eight - 8-32 Nylock Nut
- Estimated Maximum Speed: 12 ft./sec
- Frame Length: 20 in.
- Frame Width: 21 in.
- Load Capacity: 50 lbs.
- Max Extend Height: 7.5 in.
- Max Extend Length: 24.5 in.
- Max Extend Width: 27 in.
- Motors: 4 CIM motors
- Robot Weight: 38 lbs.
- Weight: 40 lbs.
