Nano Tube 31, Right, Three 1/2 in. Key Shafts, 25 Chain Drive - am-0689R - migrated

Nano Tube 31, Right, Three 1/2 in. Key Shafts, 25 Chain Drive

by AndyMark
$286.00
$286.00 - $286.00
$286.00
$140.00
$140.00 - $140.00
$140.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-0689R
  • Description
  • Specifications
  • Product Usage:
    All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thoroughly grease the gear teeth periodically to ensure smooth operation.

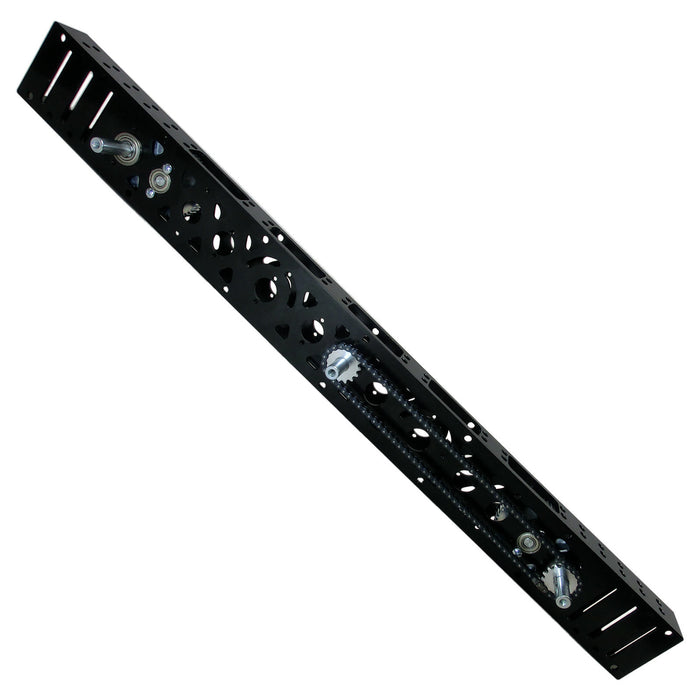

    This 31-inch-long Nano Tube houses two complete gearboxes, each having the same gearing and shafts as the Nano with 500 Key Shaft. This unit also has a third central shaft, which is dropped by 0.13 in. compared to the end shafts. This central shaft is driven by a 25-series chain from one of the end drive shafts. Nano Tube accepts two 2.5 in. CIM Motors. Hardware is included for attaching this motor.

    This product is intended to be used as a complete drive module for the side of a 6-wheel-drive robot. A second tube is to be used on the opposite side of the robot in order to make the complete drive chassis. Version: 3-shaft, 500 Key, Chain Drive
    • Center Distance: 13.76 in.
    • Chain Size: ANSI 25 series
    • Sprockets: Two S25-16HA-500K Aluminum Sprockets (am-0277)
    • Weight: 9.181 lbs.
