NeveRest Orbital Adapter Mount - am-5462 - migrated

NeveRest Orbital Adapter Mount

by AndyMark

$9.60 - $9.60

$9.60

$9.60

$9.60 - $9.60

$9.60

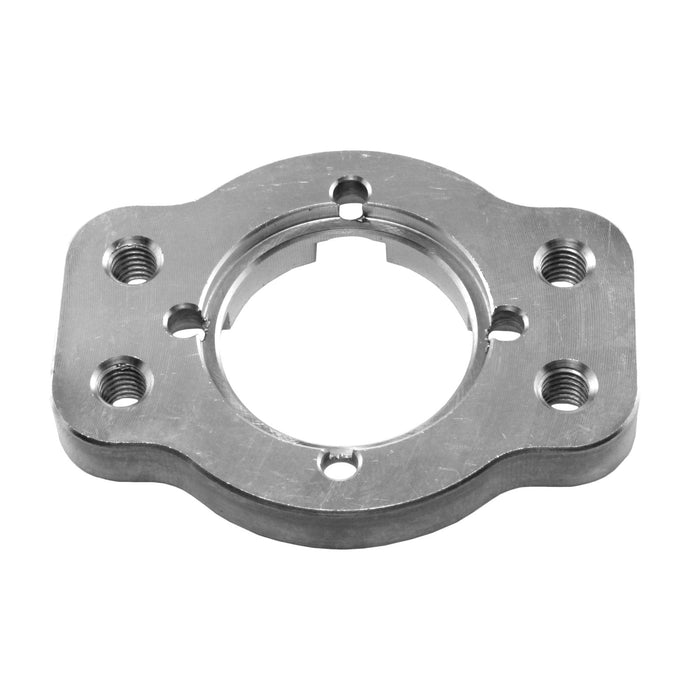

The NeveRest Orbital Adapter Mount is an easy way to convert existing NeveRest Orbitals to the mounting pattern found on our NeveRest Hex gearmotors.

Description
Specifications
Documentation

The NeveRest Orbital Adapter Mount is an easy way to convert existing NeveRest Orbitals to the mounting pattern found on our NeveRest Hex gearmotors. This adapter also has a bearing flange recess on one side making it an ideal component for adding one of our 7/8 OD flanged bearings to your project.
- Adapter Mounting Pattern: Four 10-32 tapped holes (1.5 in. by 0.5 in. apart)
- Bore: 0.875 in.
- Material: Aluminum
- Motor Mounting Pattern: Four M3 holes on a 28 mm bolt circle
CAD Files
am-5462 NeveRest Orbital Adapter Mount.STEP
Layout Prints
am-5462 NeveRest Orbital Adapter Mount.pdf
